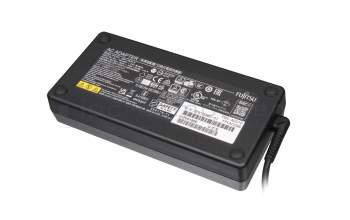

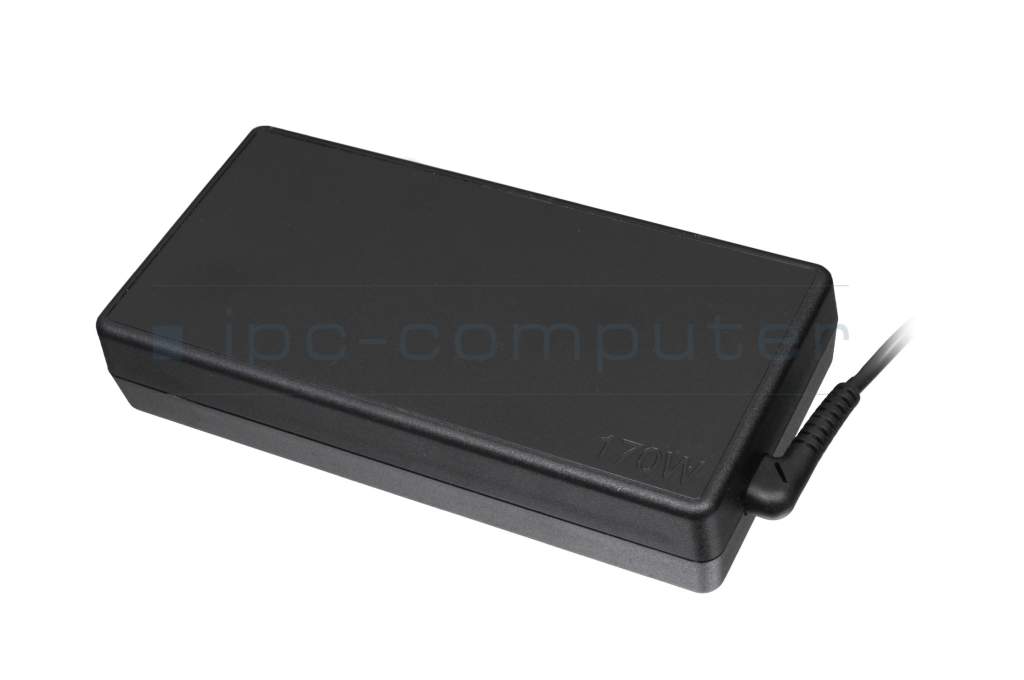

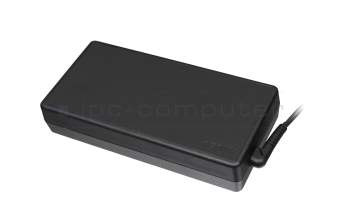

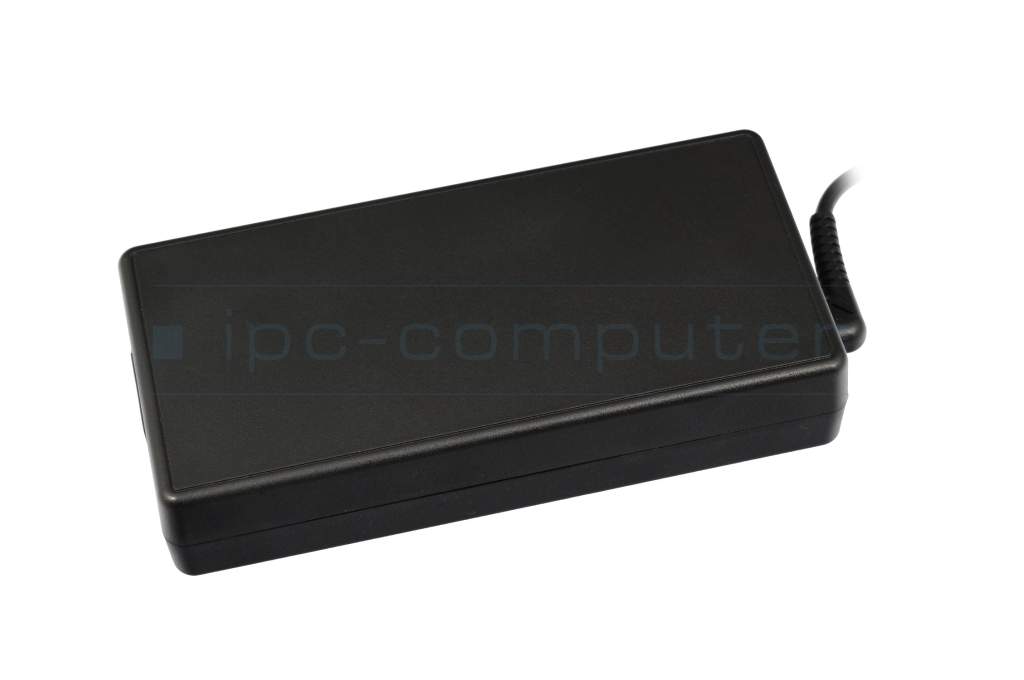

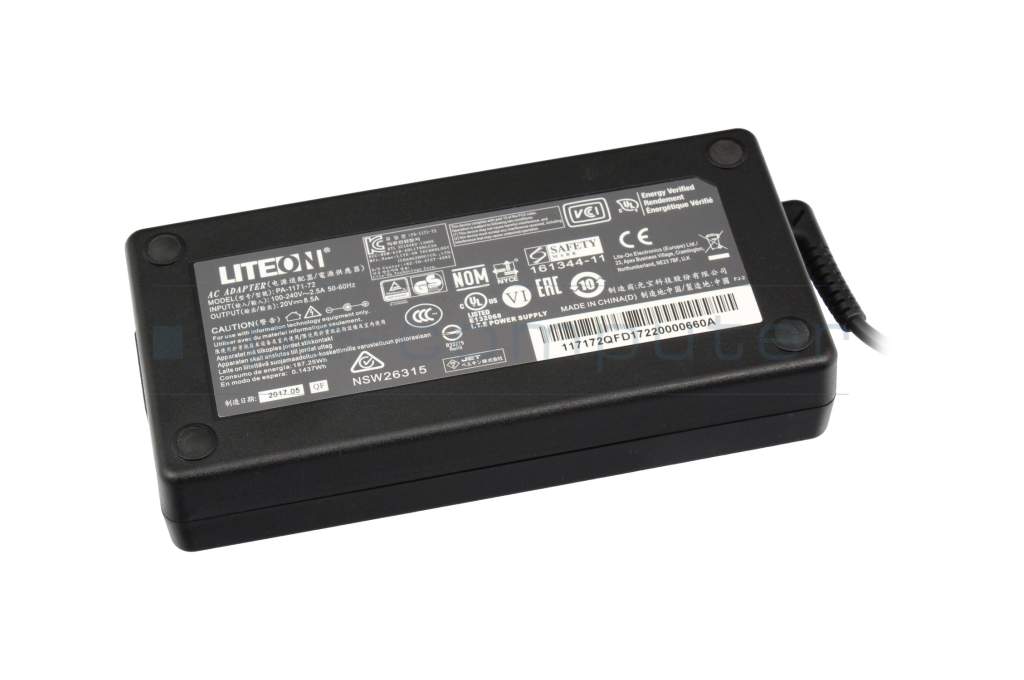

CP802131-XX original Fujitsu AC-adapter 170.0 Watt slim

FUJITSU Original
164.00 EUR
incl. Tax (19%)
plus shipping charges
7 pieces in stock.Until 3pm, shipping today.Also Express shipping possible.

Substitute part numbers:

34078085

Manufacturer
Fujitsu
Item Number
CP802131-XX
Sub-Partnumbers
34078085,

Common data

Condition
New
Intended use
Laptops
Color
black
Design
slim

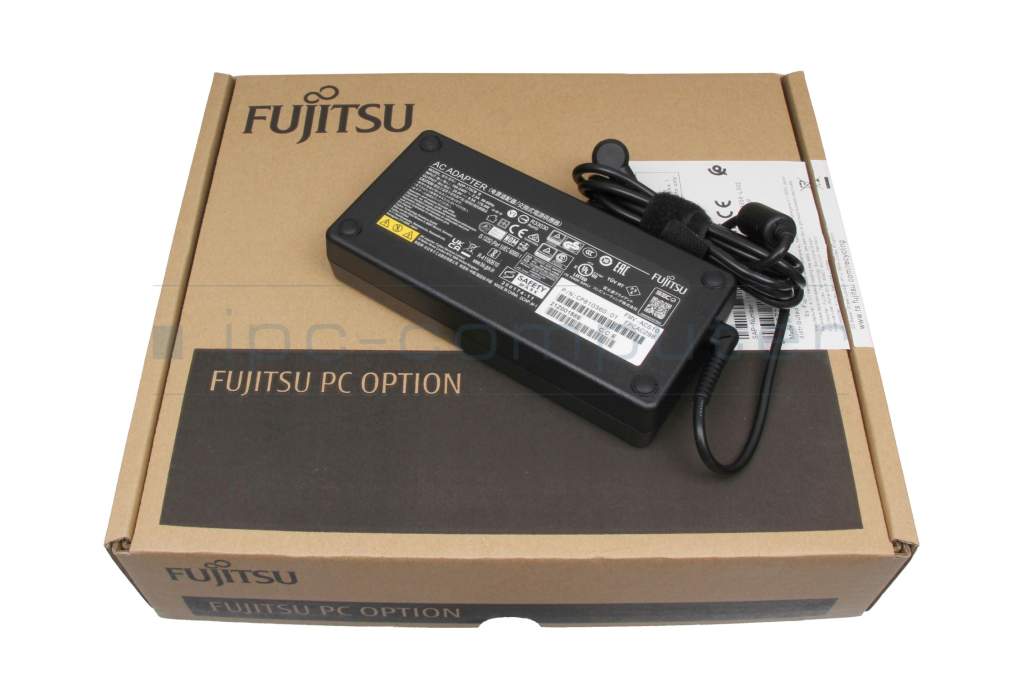

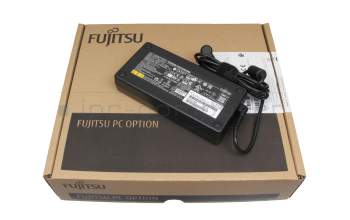

Delivery includes
(3-pole cable + EU-plug)

Technical Data

Tension (volt)
20 Volt
Amperage (ampere)
8.5 Ampere
Output (watt)
170.0 Watt
Input (volt)
100-240V / 50-60Hz
Energy efficiency
VI

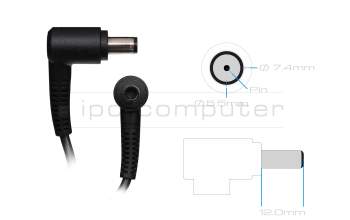

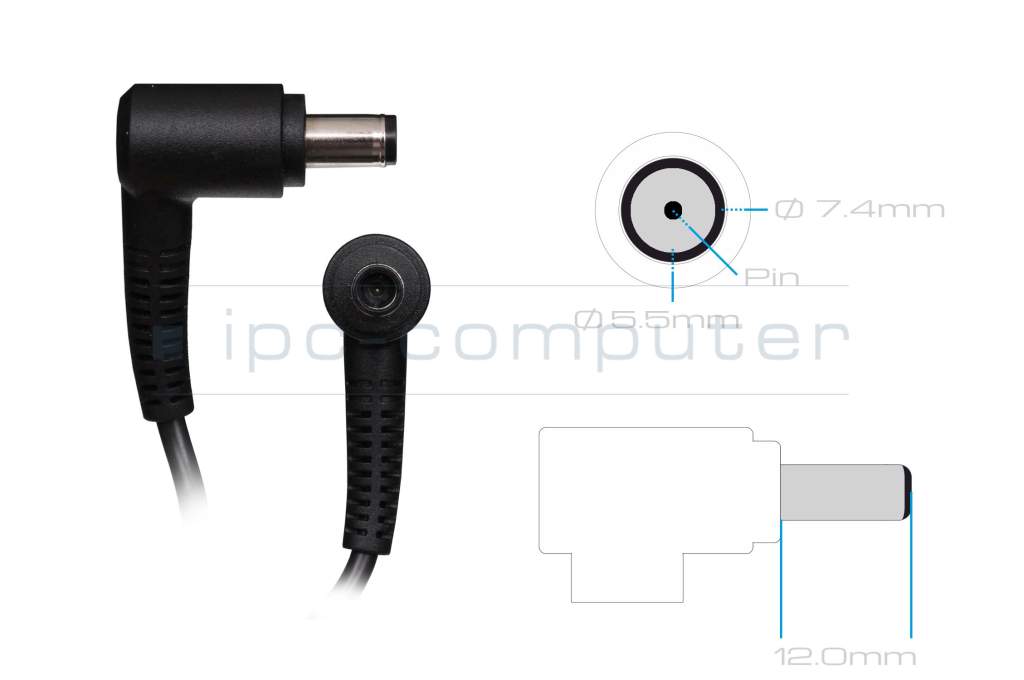

Laptop Plug

Connector type / shape
round / 90° angeld
Connector length (mm)
12.0 mm
Connector diameter outer / inner
7.4 mm / 5.5 mm
Connector with pin
Yes

Weight & Meassurements

Length / Width / Hight
153 mm / 73 mm / 30 mm

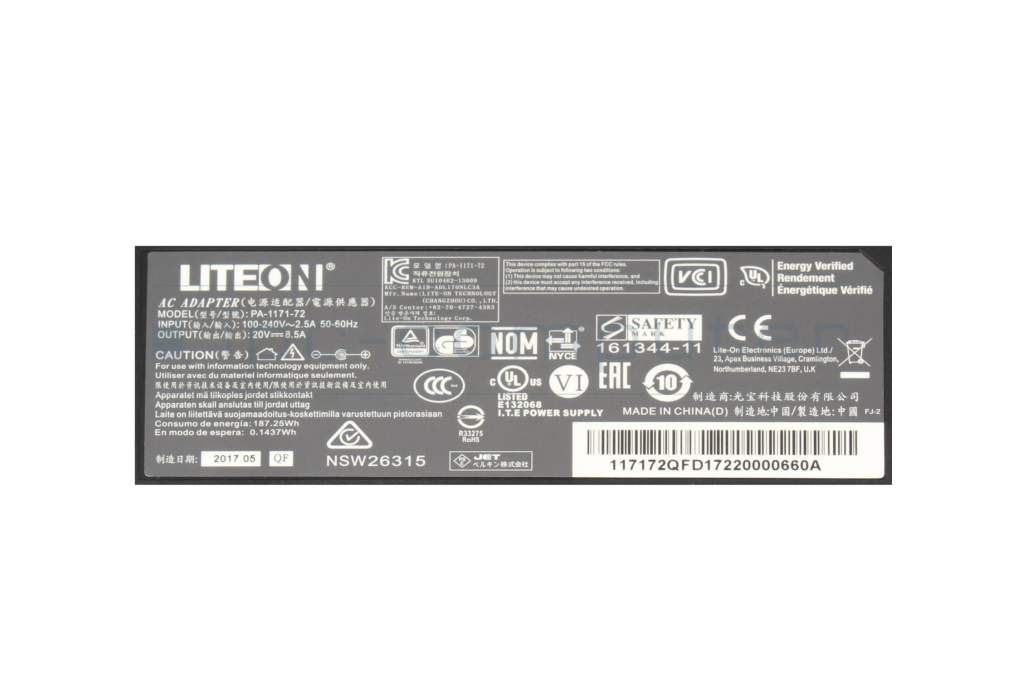

More Information

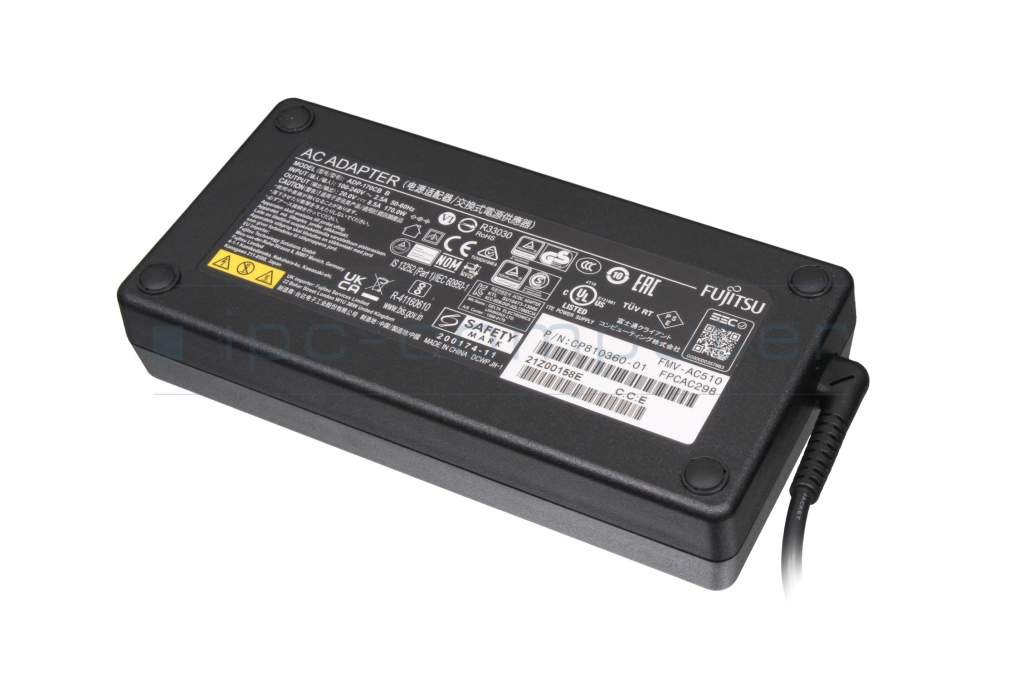

Seal of approval
CCC
CE
EAC
NOM NYCE
PSE
Singapore Safety Mark
Technical Inspection Association (TÜV)
TÜV Argentina Certificado
UKCA
UL Listed
suitable for Fujitsu Thunderbolt 4 FPCPR401BP

Category

Category
AC-Adaptor
Usage
Laptop
Excerpt of suitable models for P/N CP802131-XX
Fujitsu LifeBook U9310X , Fujitsu LifeBook U9312X , Fujitsu LifeBook U9311 , Fujitsu LifeBook U7410 , Fujitsu LifeBook U7312 , Fujitsu LifeBook U9310X , Fujitsu LifeBook U7413 , Fujitsu LifeBook U9413 , Fujitsu Lifebook U9313X , Fujitsu LifeBook U9312

You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.

How to identify my notebook model?

Videos & Contributions

Recognize defective notebook power supply - purchase advice

Notebook power supplies are essential for most technical aids in the office and at home. - With these "step-by-step" instructions we help to prevent bad purchases.

Learn more >
New notebook power supplies in various designs

New notebook power supplies in various designs

Customers often wonder why their replacement power supply looks different from the original. Why you don't have to worry about compatibility and what advantages an alternative design offers.
Learn more >

Important and useful informations about laptop AC adapters

Frequently asked questions about AC adapters

  • Can I use my old power supply for my new Notebook

    Whether you can continue using your old power supply depends on three factors.

    • Is the plug identical to the one of your old Notebook?
    • Is the wattage greater or equal then the one of the old power supply?
    • The Voltage has to be the same, however a tolerance of +/- 1 Volt is acceptable.
  • How do I find out how what the output power (watts) of my power supply is

    All the necessary information to calculate it can be found on the back of the power supply. To calculate the output power of the unit, use the specifications listed under "output".

    Calculation:

    Ampere * Volt = Watt

    Example: 4,74 A * 19 V = 90,06 W

    The power supply therefor has 90 Watt.

  • I have a 65 watt power supply, can I also use one with 90 watt?

    Yes, you can use a power supply with a higher wattage, however you need to pay attention that the voltage doesn't deviate more than one volt from the voltage of the original power supply.

    It also doesn't work the other way around; your new power supply needs to have at least the same wattage as the old one.

  • I would like to use my Laptop in my car, what kind of power supply do I need?

    To use your laptop in a vehicle you need a car-adapter, which converts the 12 Volt your car provides to 19 Volt most Laptops need.

    If there is no car-adapter, that is compatible to your notebook, you can use an inverter which generates mains power from the power, supplied by the car. You can then plug your normal power supply into it.

  • My laptop battery is no longer charging, is my charger broken?

    Not necessarily, try taking your battery out (if possible) and starting the computer while connected to the charger in question. If it starts, the power supply is working but something in the Notebook is broken.

    There are also multiple indicator lights, on the laptop, whether it is being charged, also this can be seen in most operating systems. You can also use the indicator light found on some chargers to diagnose an issue with a cable.

  • My power supply is getting pretty hot, is that normal?

    Power supplies are subject to certain specifications and can reach up to 50°C. The most amount of heat is produced when working on the Notebook and charging the battery at the same time. As long as you can touch your charger without getting burnt, its temperature is probably within specification. However, it is most important, that the heat can be dissipated, therefor you should never put your power supply under a blanket or in a closed drawer.

  • What meaning do the test marks on the power supplies have?

    CE-Zeichen

    The CE-mark confirms, that the power supply is compliant with all EU regulations.

    CCC-Zeichen

    If the CCC-certificate is present, the power supply may be im- or exported to and from China.

    NOM-NYCE-Zeichen

    The NOM mark is issued by the NYCE. The NOM (Normas Oficiales Mexicanas) is mandatory in Mexico.

    PCT-Zeichen

    The PCT-certificate is mandatory for importing or exporting to or from Russia.

    PSE-Zeichen

    The PSE-test mark is mandatory in Japan and is issued by the Ministry of Economy, Trade and industry.

    Safty-Mark-Zeichen

    The Singapur Safety-Mark is issued by the technical inspection agency of singapur.

    TÜV-Zeichen

    TÜV - Geprüfte Sicherheit. The technical inspection agency inspects for compliance with the product safety law, integrates many other product specific checks and asserts whether the manual is correct and complete

    UL-Eco-Zeichen

    The UL-certification mark for sustainable products indicates, that a product has been tested by the UL Environment Inc. and is compliant with their testing criteria.

    UL-Listed-Zeichen

    The UL Listed-mark indicates, that a representative unit has been tested by the UL and meets their safety criteria. These criteria are largely based on the safety standards published by the UL

  • Will my battery charge faster with a power supply that has a higher wattage?

    No, because a circuit in the Notebook controls how much power arrives at the battery and not the charger.
