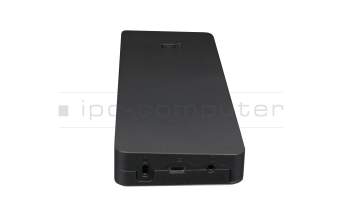

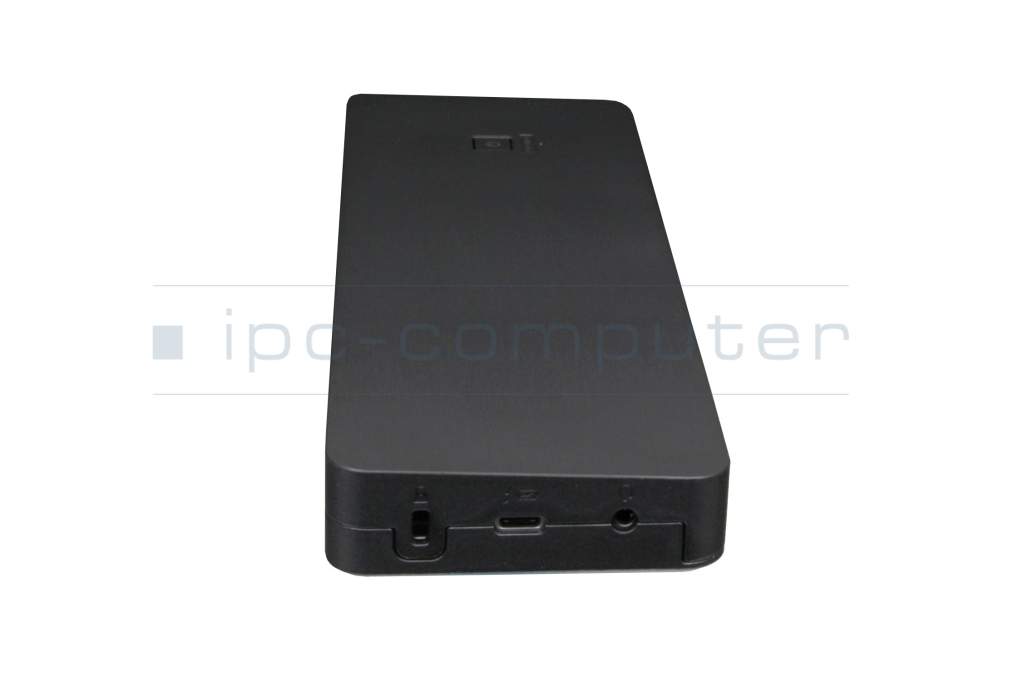

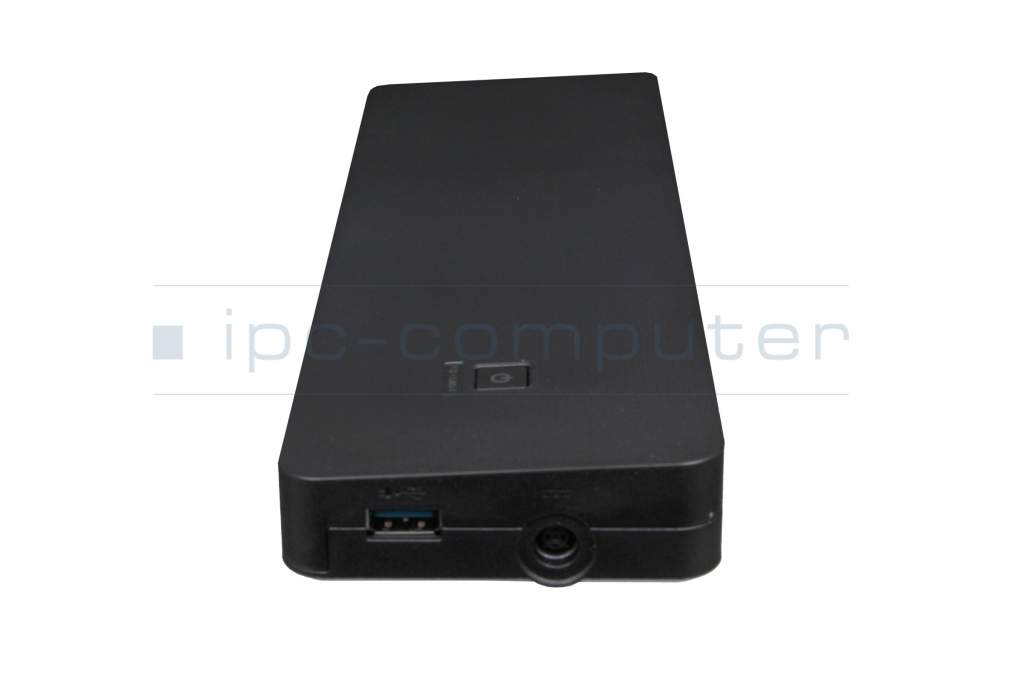

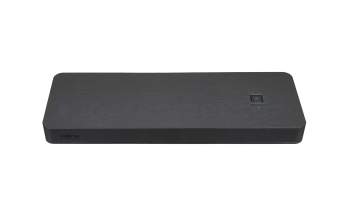

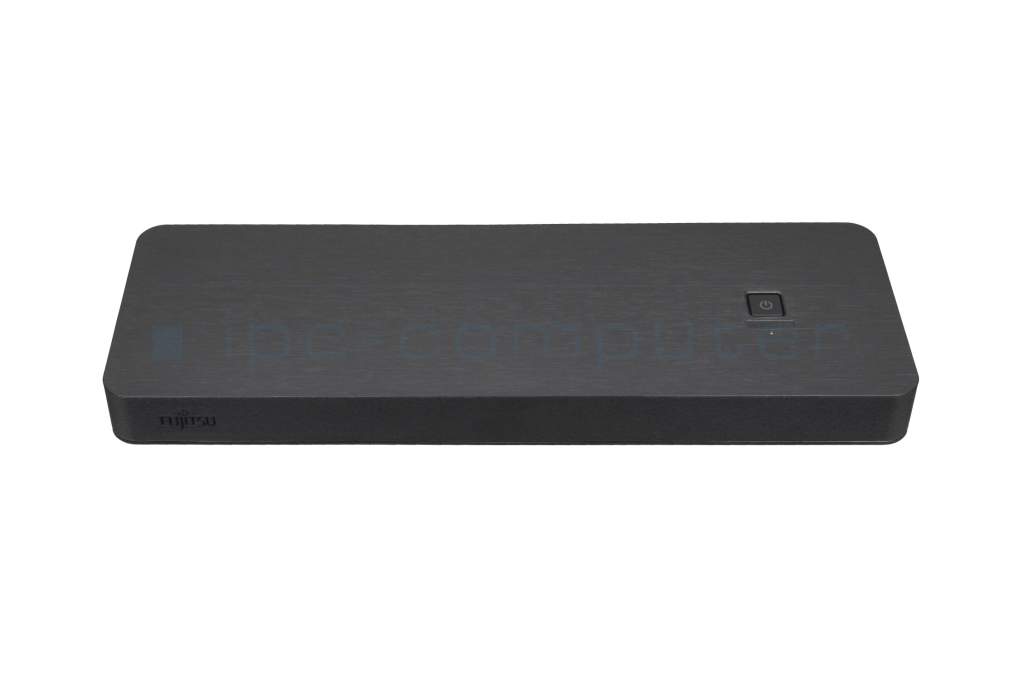

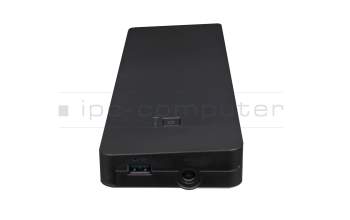

Fujitsu 34080230 Thunderbolt 4 (Trident2) Port Replicator incl. 170W Netzteil
PRIPC2 IPC-Computer Thunderbolt 4 Quad Display Port Replicator incl. 160W ac-adapter
plus shipping charges
Product Info
- Manufacturer
- Fujitsu
- Item Number
- 34080230
- Primary Partnummer
- FPCPR401BP
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Thunderbolt 4

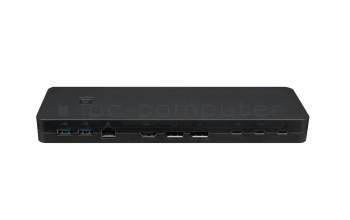

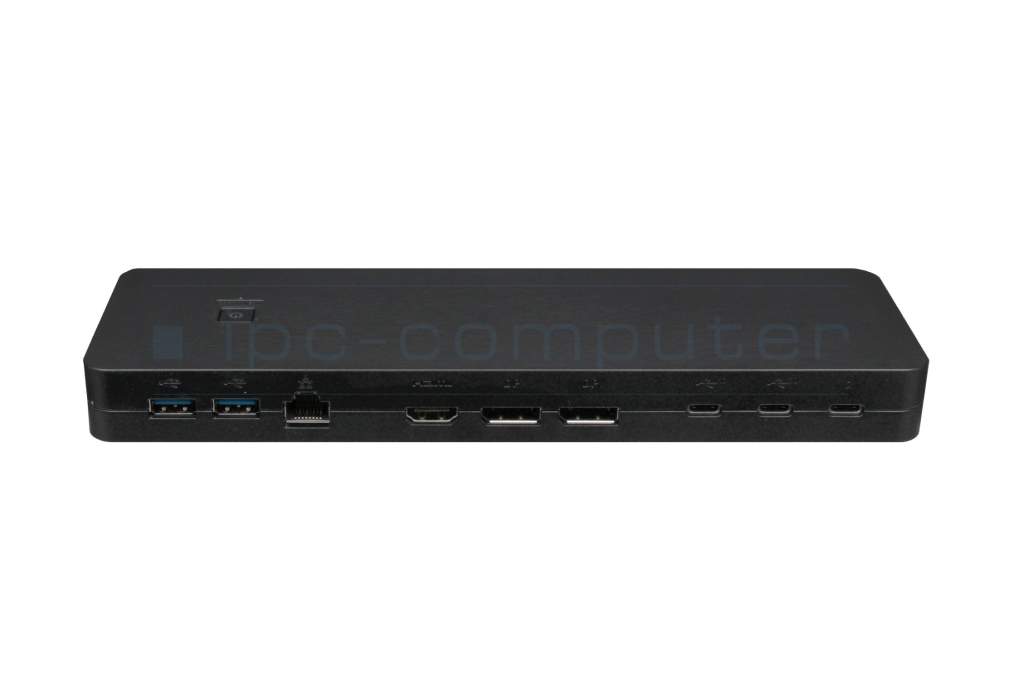

- Connectors
-
1x Audio-Combo
1x DC-In (Power supply)
1x HDMI 2.0b
1x Kensington-Lock
1x RJ-11 (modem)
2x DisplayPort 1.4
2x Thunderbolt 4
2x USB-C 3.2 Gen 2
3x USB-A 3.0 - Max. resolution of external monitors
-
1x 8K - 7680x4320 @ 30Hz
1x UHD+ - 5120x2880 @ 60Hz
2x 4K2K - 4096x2160 @ 60Hz

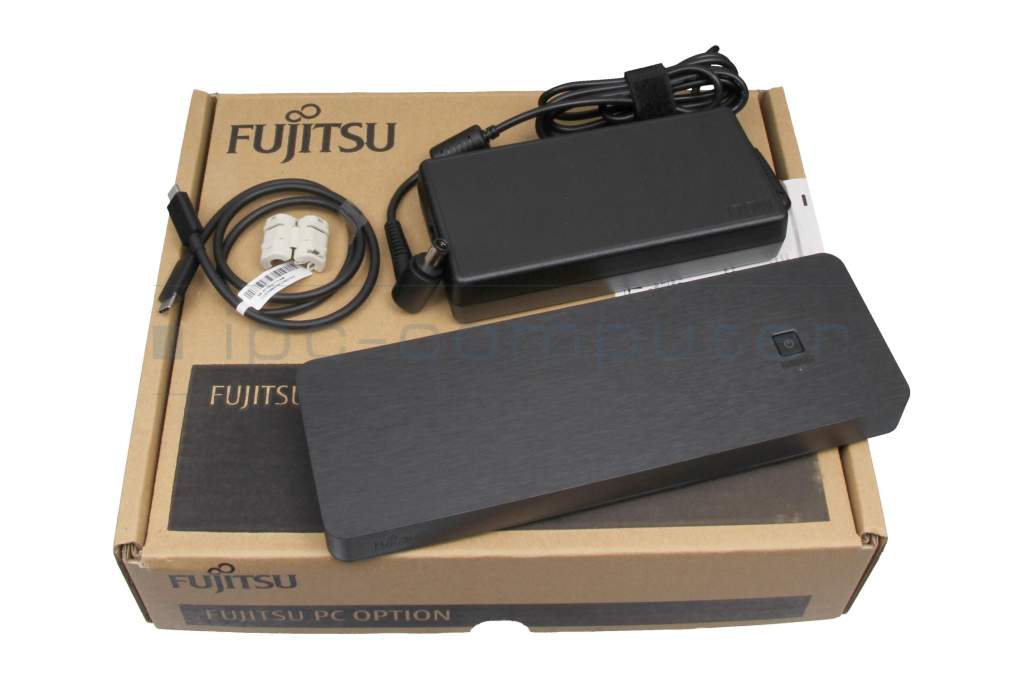

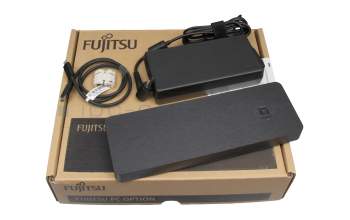

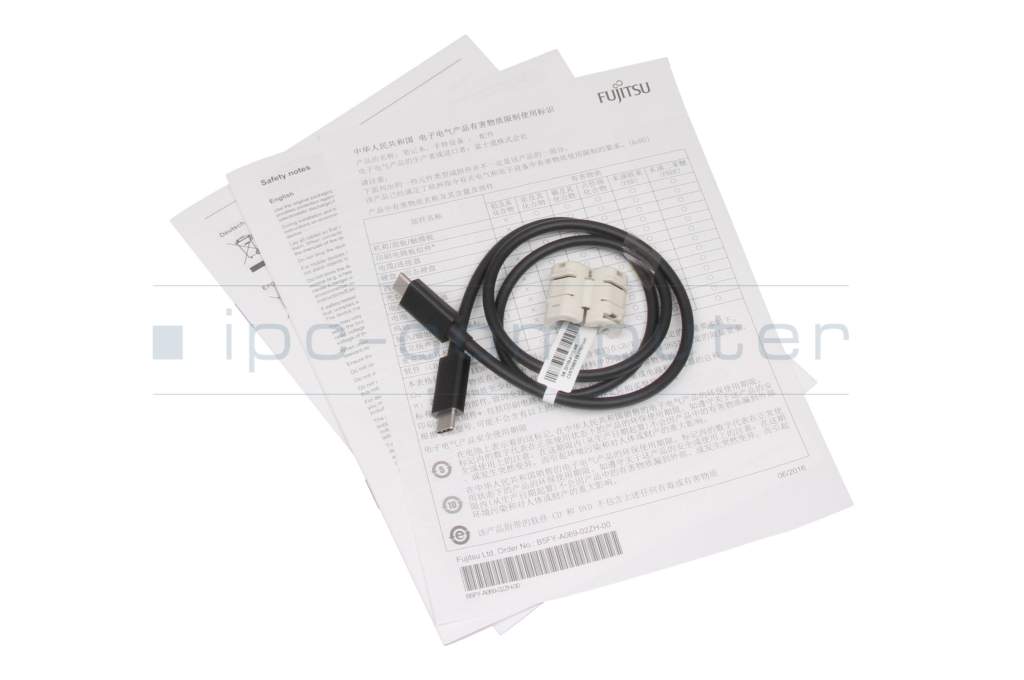

3x UHD - 3840x2160 @ 60Hz - Delivery includes
-
AC-Adapter
Port Replicator
Safety Information
Thunderbolt cable - Included ac-adaptor
- 170W
- Compatible operating systems
-
Windows 10 (32bit/64bit)
Windows 11
Windows 2000
Windows 7 (32bit/64bit)
Windows 8 (32bit/64bit)
Windows 8.1 (32bit/64bit)
Windows Vista (32bit/64bit)
Windows XP (SP3) - Length / Width / Hight
- 24 cm / 8 cm / 2.6 cm
Pros
Use the existing interfaces of your laptop separately. Easily connect and disconnect the ports for e.g. mouse, printer, USB in a fast and secure way. Mirroring or extending your desktop to external monitors.
With a Dock connected via USB type-C, no additional power supply needed to operate your laptop and charge your battery. Please note that a maximum power consumption of 100 watts is possible via the USB-C connection. (may differ a little between manufacturers and constellation of laptop and dock). If your laptop has a higher power consumption, you will still need a additional power supply for operation.
A Thunderbolt™ port replicator with enhanced security.
The universal port, which offers high-speed data transfer, makes it easy to connect almost anything with a single cable.
almost anything with a single cable.
This gives you a smartly organised and tidy workspace.
With a single cable connected to your client, you save space.
Benefit from connected and disconnected additional devices.
The system supports Intel® AMT (vPro®).
Other features
* USB charging LED
* 2 x USB-C interfaces with Thunderbolt™ 4 as well as 2 x USB-C and 3 x USB-A interfaces
* On/off switch for certain FUJITSU clients.
* DisplayPort and HDMI
* PXE boot
* MAPT (MAC Address Pass Through)
* WoL (Wake on LAN) (Win OS)
* Supports FUJITSU devices from 10th generation onwards
* Backward compatible support of certain FUJITSU devices with
Thunderbolt™ 3 and USB C.
The number of displays used simultaneously and their possible resolutions and frequencies depend on the type of mobile system and display interface.
Compatible with these Fujitsu notebooks:
LIFEBOOK E4411
LIFEBOOK E4412
LIFEBOOK E4511
LIFEBOOK E4512
LIFEBOOK E5411
LIFEBOOK E5412
LIFEBOOK E5511
LIFEBOOK E5512
LIFEBOOK U5313X
LIFEBOOK U7311
LIFEBOOK U7312
LIFEBOOK U7313
LIFEBOOK U7411
LIFEBOOK U7412
LIFEBOOK U7413
LIFEBOOK U7511
LIFEBOOK U7512
LIFEBOOK U7613
LIFEBOOK U9311
LIFEBOOK U9311X
LIFEBOOK U9312
LIFEBOOK U9312X
LIFEBOOK U9313X
LIFEBOOK U9413
STYLISTIC Q7311
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N 34080230
- Fujitsu LifeBook U9312X , Fujitsu LifeBook U7412 , Fujitsu LifeBook E4412 , Fujitsu Lifebook U9313X , Fujitsu LifeBook U7512 , Fujitsu LifeBook U7411 , Fujitsu LifeBook U9311 , Fujitsu LifeBook E5412 , Fujitsu LifeBook U9312X , Fujitsu LifeBook U9311X
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
