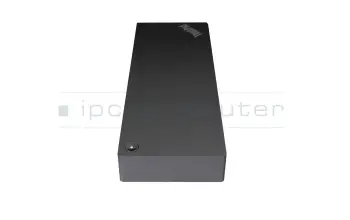

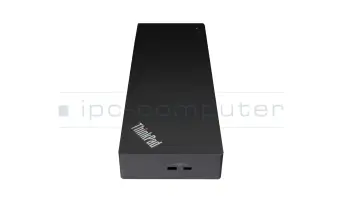

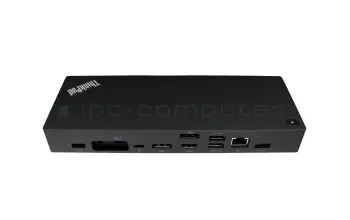

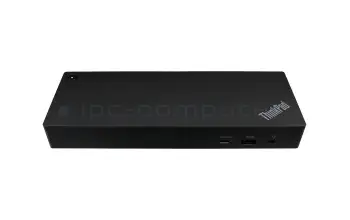

Lenovo 5D21C04010 ThinkPad Thunderbolt 4 Workstation Dock incl. 300W Netzteil
- Manufacturer
- Lenovo
- Item Number
- 5D21C04010
- Primary Partnummer
- 40B00300EU
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Thunderbolt 4
- Connectors
-
1x Audio-Combo
1x Ethernet (RJ-45)
1x HDMI 2.1
1x Lenovo Split
1x Thunderbolt 4
1x USB-A 3.2 Gen 2 + "Always On" Charging
1x USB-C 3.2 Gen 2 + "Always On" Charging
2x DisplayPort 1.4
2x Kensington-Lock
3x USB-A 3.2 Gen 2 - Max. resolution of external monitors
-
1x UHD - 3840x2160
1x UHD+ - 5120x2880 @ 60Hz
2x 8K UHD - 7680x4320 @ 30Hz
3x UHD - 3840x2160 - Delivery includes
-
AC-Adapter
Docking Station
Manual
Port Replicator
Power cable
Thunderbolt cable - Included ac-adaptor
- 300W
- Compatible operating systems
-
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 22 cm / 8 cm / 3 cm
Pros
Use the existing interfaces of your laptop separately. Easily connect and disconnect the ports for e.g. mouse, printer, USB in a fast and secure way. Mirroring or extending your desktop to external monitors.
With a Dock connected via USB type-C, no additional power supply needed to operate your laptop and charge your battery. Please note that a maximum power consumption of 100 watts is possible via the USB-C connection. (may differ a little between manufacturers and constellation of laptop and dock). If your laptop has a higher power consumption, you will still need a additional power supply for operation.
Do you have high demands? Then this dock, designed for performance, will pay off for you. Improved, dynamic charging of up to 230 watts via Slim Tip or up to 100W via Type-C. 4 x 4K monitors on one dock (depending on the connected notebook) are possible. 11 ports are cleverly placed and keep your desk tidy and organized. This dock simply fulfills every requirement.
Further information on the supported resolution can be found at: Link
Supports these Lenovo models, among others:
L13 Yoga Gen 2
L13/L13 Yoga Gen 1
L14 Gen 1
L15 Gen 1
L15 Gen 2
P1 Gen 3
P1 Gen 4
P14s Gen 1
P14s Gen 2
P15 Gen 1
P15 Gen 2
P15s Gen 1
P15s Gen 2
P15v Gen 1
P15v Gen2
P17 Gen 1
P17 Gen 2
T14 HC Ed Gen 1
T14 HC Ed Gen 2
T14s Gen 1
T14s Gen 2
T15 Gen 1
T15 Gen 2
T15p Gen 1
T15p Gen2
X1 Carbon Gen 8
X1 Carbon Gen 9
X1 Extreme Gen 3
X1 Extreme Gen 4
X1 Nano Gen 1
X1 Titanium Gen 1
X1 Yoga Gen 5
X1 Yoga Gen 6
X12 Detachable Gen 1
X13 Gen 1
X13 Gen 2
X13 Yoga Gen 1
X13 Yoga Gen 2
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N 5D21C04010
- Lenovo ThinkPad L13 Gen 2 (20VH/20VJ) , Lenovo ThinkPad L13 Gen 2 (21AC) , Lenovo ThinkPad L13 Gen 2 (21AB) , Lenovo ThinkPad T15p Gen 1 (20TN/20TM) , Lenovo ThinkPad T15 Gen 2 (20W4/20W5) , Lenovo ThinkPad T15p Gen 2 (21A7/21A8) , Lenovo ThinkPad X1 Carbon 9th Gen (20XW/20XX) , Lenovo ThinkPad X1 Extreme Gen 3 (20TK/20TL) , Lenovo ThinkPad X1 Extreme Gen 4 (20Y5/20Y6) , Lenovo ThinkPad X1 Nano Gen 1 (20UN/20UQ)
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
The "secret" with the power button
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
