Dell K22A001 Universal Dock UD22 incl. 130W Netzteil
Substitute part numbers:
ud22_130w, K22A
- Manufacturer
- Dell
- Item Number
- K22A001
- Sub-Partnumbers
- ud22_130w, K22A,
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- USB-C 3

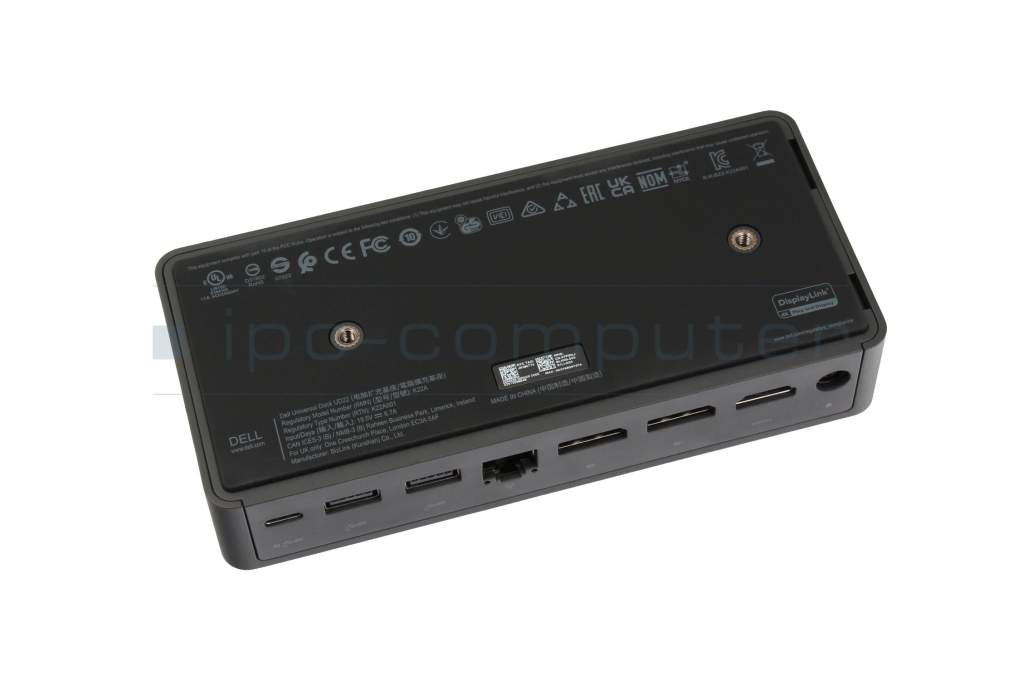

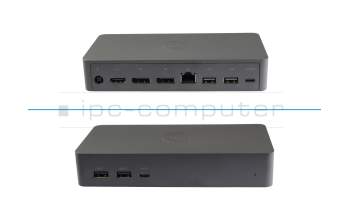

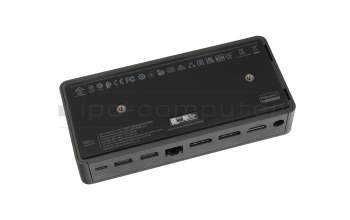

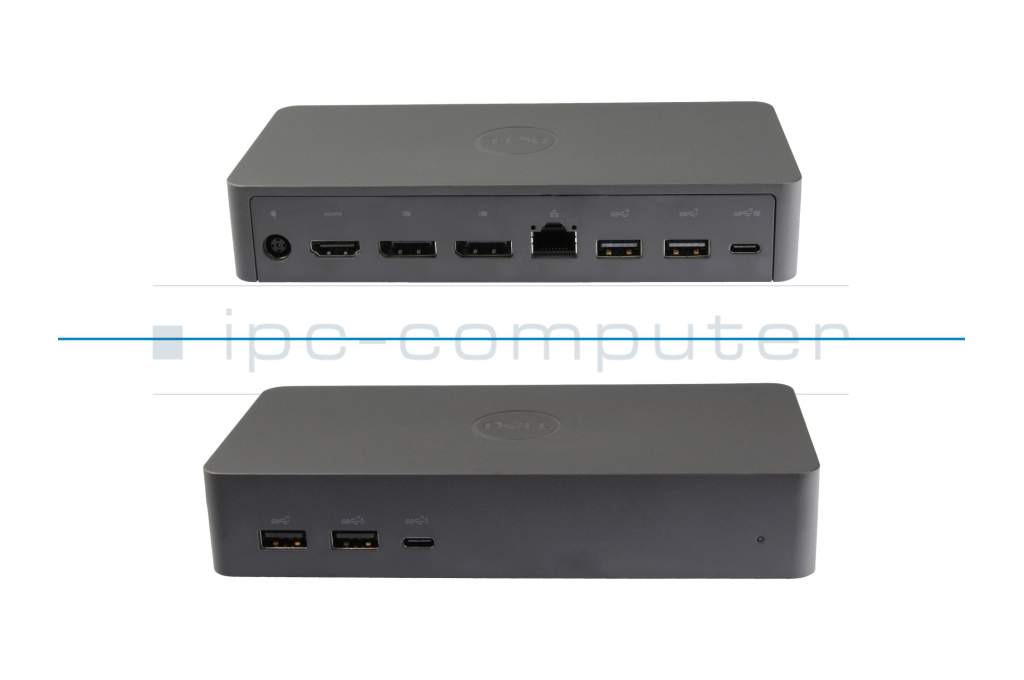

- Connectors
-
1x Ethernet (RJ-45)
1x HDMI
1x Kensington-Lock
1x USB-A 3.1 Gen 1 + PowerShare
1x USB-C 3.2 Gen 2 + DisplayPort
2x DisplayPort 1.4
3x USB-A 3.2 Gen 2
3x USB-C 3.2 Gen 2 - Max. resolution of external monitors
- 4x UHD - 3840x2160 @ 60Hz

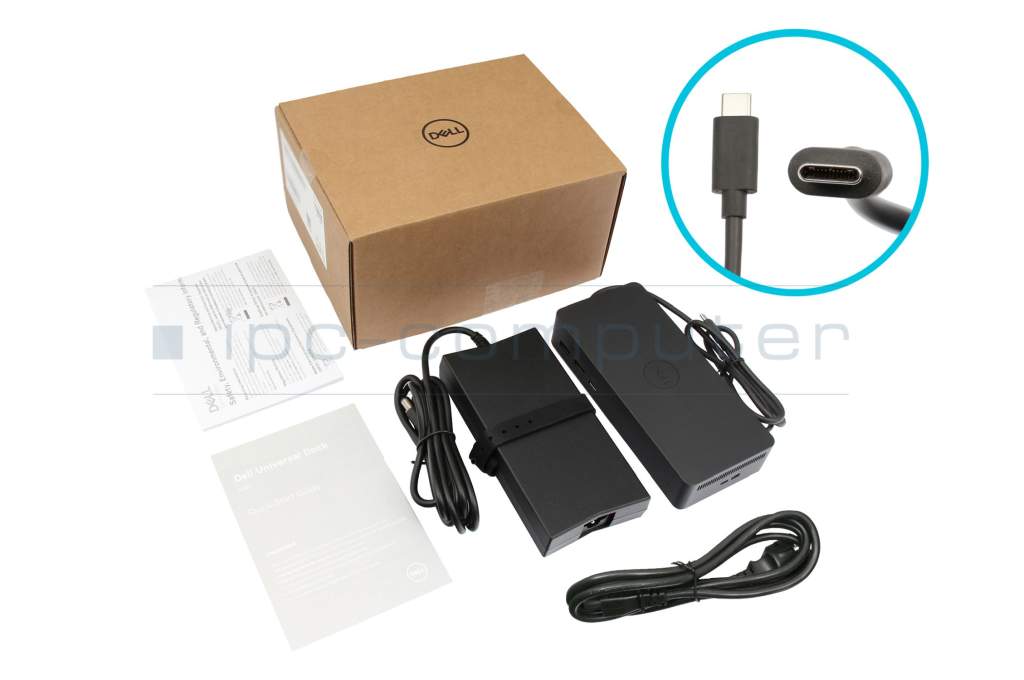

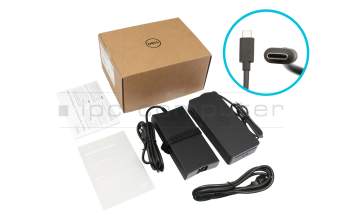

- Delivery includes
-
AC-Adapter
Manual
Port Replicator
Power cable - Included ac-adaptor
- 130W
- Compatible operating systems
-
Chrome
Linux / Ubuntu
Mac OS
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 16,5 cm / 7.5 cm / 3 cm
Pros
Use the existing interfaces of your laptop separately. Easily connect and disconnect the ports for e.g. mouse, printer, USB in a fast and secure way. Mirroring or extending your desktop to external monitors.
With a Dock connected via USB type-C, no additional power supply needed to operate your laptop and charge your battery. Please note that a maximum power consumption of 100 watts is possible via the USB-C connection. (may differ a little between manufacturers and constellation of laptop and dock). If your laptop has a higher power consumption, you will still need a additional power supply for operation.
Universal connectivity and next-level productivity
Consistent user experience
Connect any USB-C laptop - regardless of manufacturer and operating system (compatible USB-C port required).
Multiple ports
The universal docking station has more ports than ever - for more flexibility in building a productive work environment.
Multiple monitor support
Upgrade your coworking spaces with display support that's consistent across systems. Up to four 4K monitors can be connected via DisplayLink drivers.
Power Delivery for peak performance
Enable fast charging for any USB-C laptop with Power Delivery that delivers up to 96W of power.
Faster and easier deployment
Get started right after you plug in your laptop, even without a DisplayLink driver installed, thanks to additional support for DisplayPort Alternate mode.
Enhance the shared workstation experience even more with DisplayLink's layout provisioning feature, which automatically presents users with a pre-configured display layout.
Other:
Slot for Kensington Nano lock / Kensington lock (cable lock sold separately).
Wake-On-LAN
3 LED indicators
MAC address throughput
wireless vPro
96 W power supply
High Bit Rate 3 (HBR3)
High Bit Rate 2 (HBR2)
DMA protection (Kernel Direct Memory Access)
Connection cable: 1 x USB-C cable - 0.8 m
More information about the available ports, max. For more information about the available ports, max. resolutions and connection options of displays as well as drivers and firmware updates, please visit Dell support page.
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N K22A001
- Dell Inspiron 14 (5410) , Dell Latitude 15 (5510) , Dell Latitude 13 2in1 (9330) , Dell Latitude 14 (3410) , Dell Latitude 13 (7330) , Dell Precision 14 (3470) , Dell Inspiron 14 (5401) , Dell Inspiron 16 (5620) , Dell Latitude 11 (3120) , Dell Inspiron 13 (7378)
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
