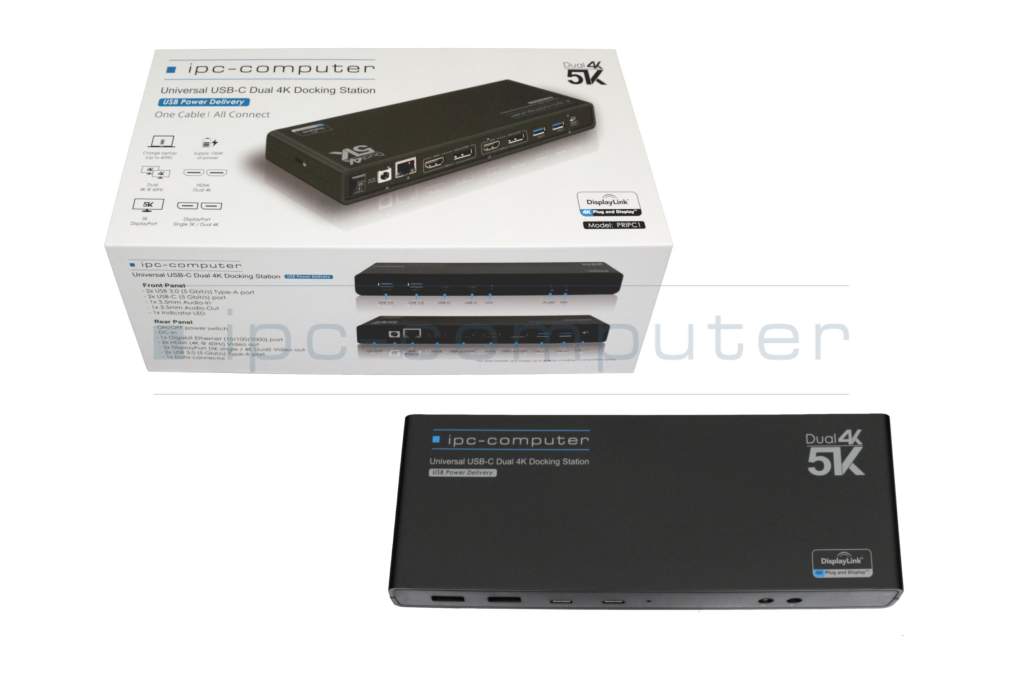

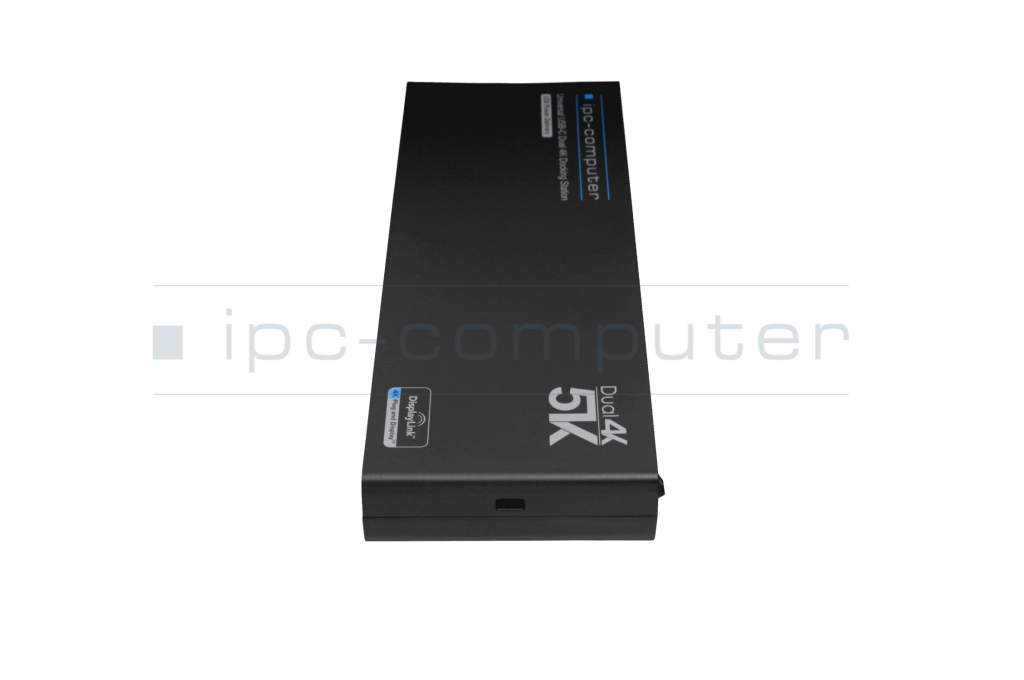

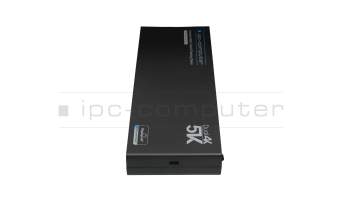

IPC-Computer IPC Docking Station Dual 4K Hybrid-USB Docking Station incl. 100W Netzteil
Substitute part numbers:
IPC Port-Replicator
In addition to common Microsoft Windows devices, this dock also supports the Apple MacBook Air/Pro M1, M2 and M3, as well as Macbook Pro 2020 Intel
PRIPC2 IPC-Computer Thunderbolt 4 Quad Display Port Replicator incl. 160W ac-adapter
plus shipping charges
Product Info
- Manufacturer
- IPC-Computer
- Item Number
- IPC Docking Station
- Sub-Partnumbers
- IPC Port-Replicator
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- USB-C / USB-A

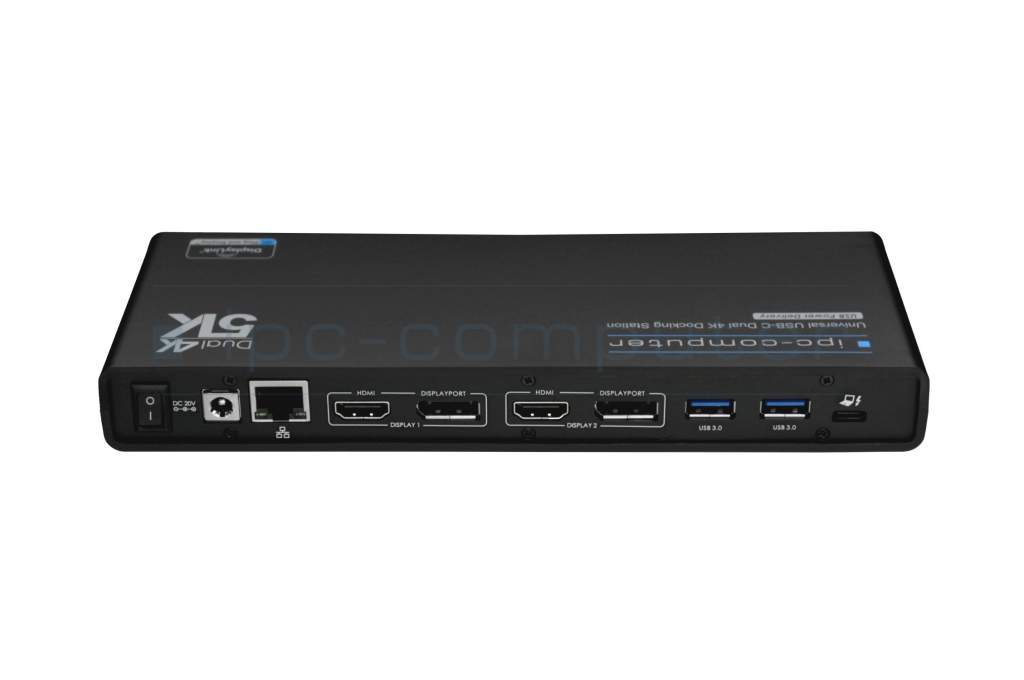

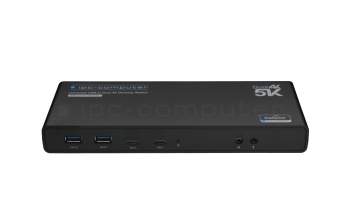

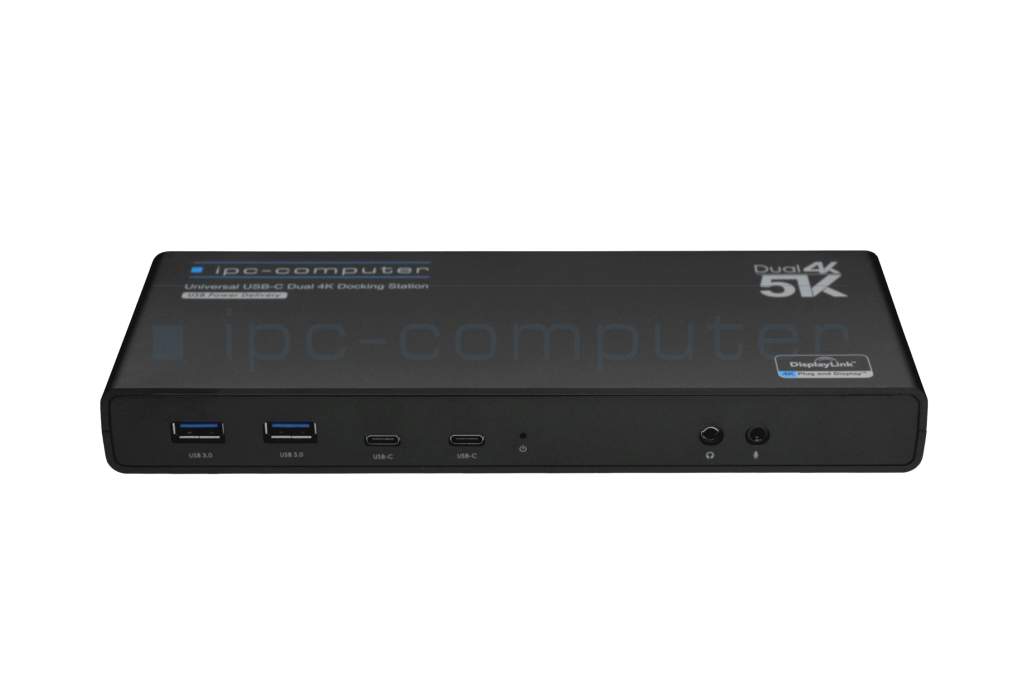

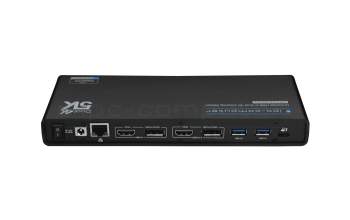

- Connectors
-
1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x Kensington-Lock
1x headphone (line-out)
1x microphone (line-in)
2x DisplayPort 1.2
2x HDMI 2.0
2x USB-C 3.2 Gen 1
4x USB-A 3.2 Gen 1 - Max. resolution of external monitors
-
1x UHD+ - 5120x2880 @ 60Hz

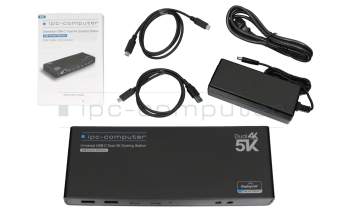

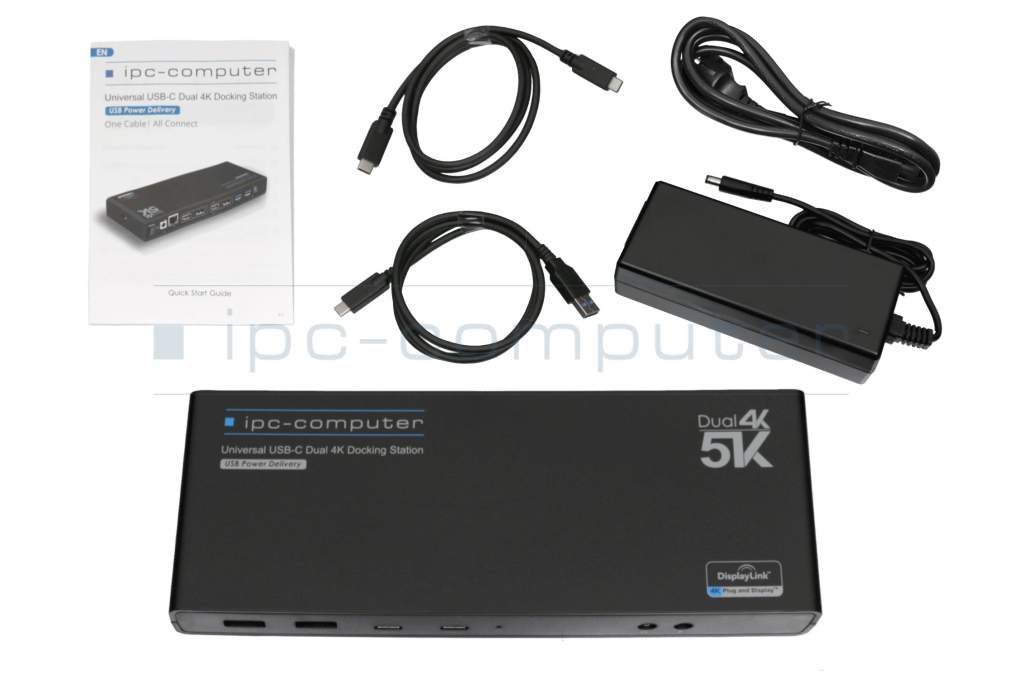

2x 4K2K - 4096x2160 @ 60Hz - Delivery includes
-
AC-Adapter
Docking Station
Manual
Power cable
USB-A 3.0 cable
USB-C cabel - Included ac-adaptor
- 100W
- Compatible operating systems
-
Mac OS
Windows 10 (32bit/64bit)
Windows 11
Windows 8.1 (32bit/64bit) - Length / Width / Hight
- 22,3 cm / 8 cm / 2.6 cm
Advantages
The port replicator from IPC fulfills all the tasks that a port replicator can do great. It is independent of the model and manufacturer and can be connected to any free USB port. This means that you can use your notebook even when it is closed. You can find more information here .
No more additional cables need
Due to its simple and modern design, the IPC port replicator fits perfectly to every modern workplace and it combines the numerous cables in one place. It eliminates the time-consuming connection of all peripheral devices when you return to the workplace and lets you use your notebook flexibly and mobile.
Up to 8k (including 2 monitors) peripheral devices
When it comes to specifications, the PRIPC1 doesn't miss out either. An outstanding feature is the support of up to two 4K / 2K monitors. Alternatively, it also supports the connection of a 5K monitor. With its numerous connections, it also offers the option of connecting accessories as required. The IPC port replicator has 4 USB 3.0 connections for mouse, keyboard, printer and other equipment. Its two USB-C ports complete the extensive connectivity options. With the 100W power supply included in the scope of delivery, the notebook can, if it supports this, be supplied and charged via USB-C by the IPC port replicator. An additional power supply unit is not necessary here.
Note
Compare the power (watts) of the power supply unit that matches your notebook with the power supply unit included with this docking station. Please note that the included power supply supports a maximum of 60W. If your notebook has a higher power consumption, you still need the power supply of your device for operation. To operate the notebook via a USB 3.0 / 2.0 connection, a power supply unit must still be connected to the notebook, as charging with this type of connection is technically not possible.
Driver and manual for the Universal USB-C port replicator from IPC-Computer
| If you need drivers for the IPC port replicator, you can download them here. | Driver Download |
| The manual for the IPC port replicator can be viewed and downloaded here. | Manual download |
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N IPC Docking Station
- Acer TravelMate 5512AWLMi , Acer Aspire 7520 , Acer Aspire 5920G , Acer Aspire 5220 , Acer Extensa 5235 , Acer Extensa 5630G , Acer Aspire 5942G , Acer Aspire 5741G , Acer TravelMate 8372T , Acer TravelMate 8472
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
Two external monitors on the MacBook Air / Pro with an M1 chip
A widespread problem is the use of two external monitors on the Apple MacBook Air / Pro with the M1 chip. But our trainee Veronica will show you how this is possible with our IPC computer dock.
Learn more >Looking for the right docking station?
For many, port replicators are already an integral part of the home office or the office. In this video we introduce you to our in-house IPC computer docking station in more detail.
Learn more >4 externe Monitore an Apple MacBook M1 M2 anschließen - Tutorial
?Portreplikator: https://www.ipc-computer.de/notebook-ersatzteile/docking-stations/docking-station-pripc1-69783531/nup?utm_source=YouTube+Notebook-Doktor&ut...
Learn more >Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
FAQs specific to this article
- After updating my Firefox browser, there is no longer a picture on the Netflix streaming service when I start a film. What can I do?
It helps to disable hardware acceleration in Firefox:
- Open Firefox.
- Click on the three-bar menu in the address bar.
- Select “Options”.
- Click on the "Performance" tab.
- Disable the “Use hardware acceleration” option.
- Click on "OK".
- Are there any restrictions when I use my MacBook with Displaylink?
There are no restrictions as such. Unfortunately, Netflix is not supported by Displaylink and therefore cannot be used.
- Can I also use a screen on the docking station vertically?
Windows: This is possible without any problems. Often you only have to make a change in the display settings.
MacOS: Since you are using the docking station in combination with the Displaylink software, this is unfortunately not possible. Unfortunately, Displaylink does not support vertical use.
- Can I also use an Apple MacBook Air/Pro M2 with the docking station?
Yes, you can operate both a Macbook Air/Pro M1 or a Macbook Air/Pro M2 with the docking station.
The M1 and M2 processors only differ in performance.
- Can I also use the docking station with only 2 HDMI or 2 DisplayPort connections?
Yes, this is possible without any problems. If you want to use two external screens, please make sure that the marked fields "Display 1" & "Display 2" are occupied once each.
- Can I use an Apple Mac mini with the docking station?
Unfortunately, there have always been compatibility problems in the past. Therefore, we do not recommend its use with Mac mini.
- Display driver error after Windows update with the docking station, what can I do?
If after the last Windows update you are no longer able to connect several screens via the PRIPC1 docking station and you receive the error message "DisplayLink USB Graphics Device: Driver error", your docking station is not defective. There are two possible solutions:
1. please try downloading and installing the latest display drivers:
2. If updating the drivers does not solve the problem, you can try to manually uninstall the last installed Windows update:
- To do this, open the "Settings" by selecting the "Gear" in the Start menu.
- Then click on "Update & Security".
- In the "Windows Update" tab, select the option "Show update history".
- Then click on "Uninstall Updates".
- Select an update here, the updates are sorted chronologically and the newest one is displayed at the top. Click on "Uninstall" and confirm by clicking on "Yes".
Caution: Not all Windows updates can be uninstalled.
If it is not possible to uninstall the update or if it does not solve the problem, you are unfortunately usually powerless and have to rely on another Windows update to solve the problem.
- Why does my IPC Docking Station no longer work after a macOS software update?
On 24 October 2022, the macOS Ventura operating system was released for many Macs.
You download version 1.8 on the DisplayLink page and everything should work smoothly again afterwards.
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
