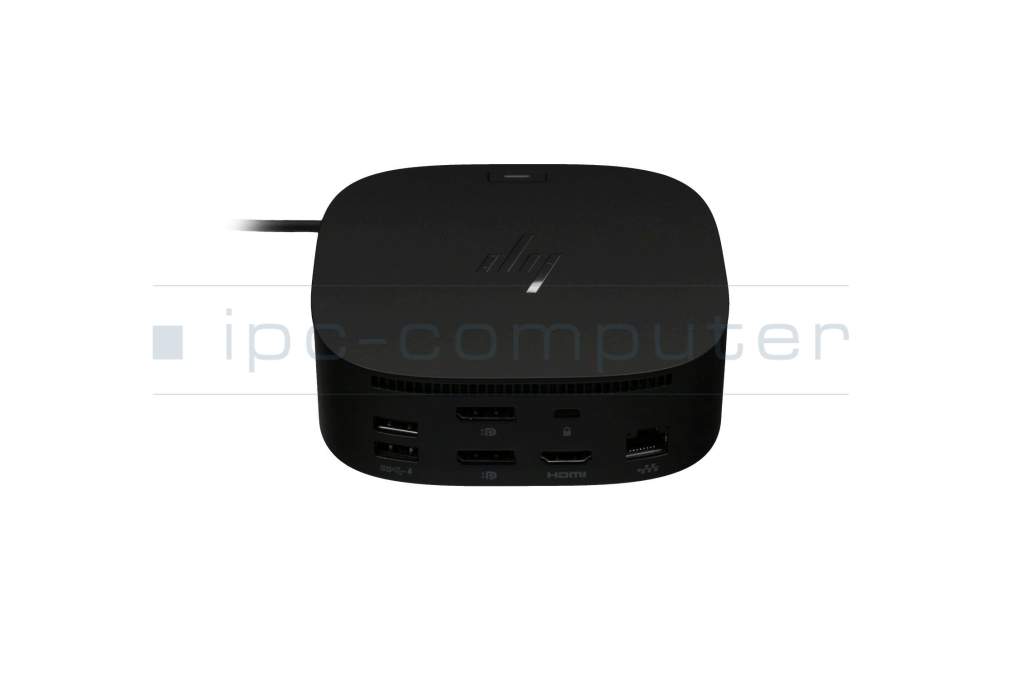

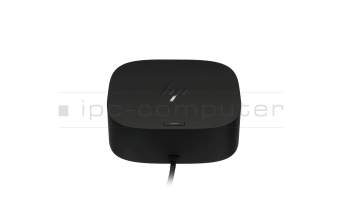

HP L65253-001 USB-C G5 Essential Dock incl. 120W Netzteil
- Manufacturer
- HP
- Item Number
- L65253-001
- Primary Partnummer
- L65253-001
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- USB-C 3

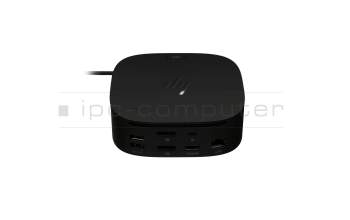

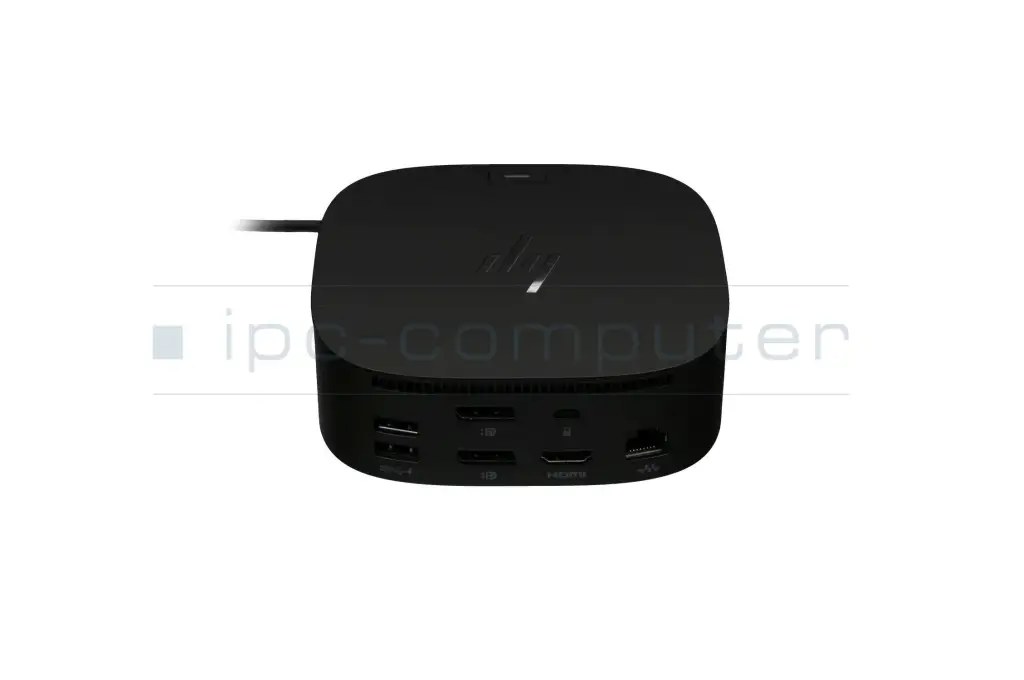

- Connectors
-
1x Audio-Combo
1x Ethernet (RJ-45)
1x HDMI 2.0
1x USB-C 3.2 Gen 1
2x DisplayPort 1.4
4x USB-A 3.2 Gen 1 - Max. resolution of external monitors
- 3x UHD - 3840x2160

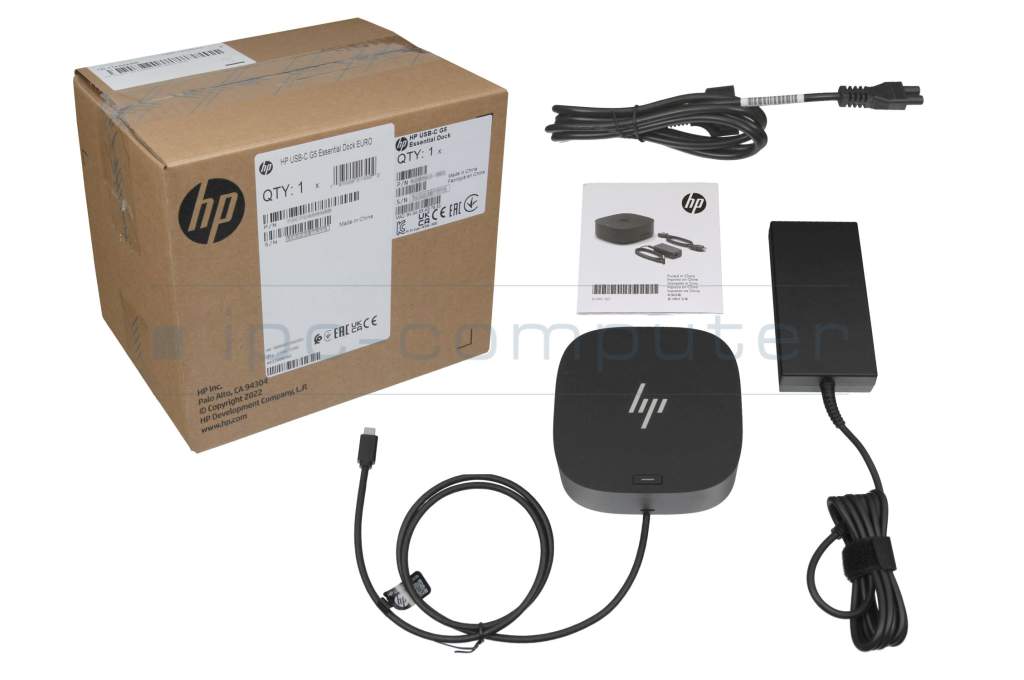

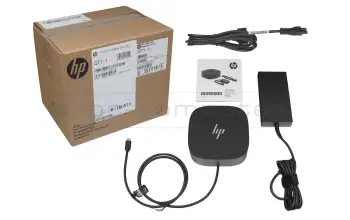

- Delivery includes
-
AC-Adapter
Docking Station
Documentation
Power cable - Included ac-adaptor
- 120W
- Compatible operating systems
-
Chrome
Linux / Ubuntu
Mac OS
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 12 cm / 12 cm / 4.5 cm
Pros
Use the existing interfaces of your laptop separately. Easily connect and disconnect the ports for e.g. mouse, printer, USB in a fast and secure way. Mirroring or extending your desktop to external monitors.
Note
Please compare the wattage of the power supply belonging to your laptop with the voltage of the power supply which comes with this docking station. To use the full function of your laptop, especially under full load, the wattage of the docking station power supply should be the same or higher than the original one that comes with you laptop.
With a Dock connected via USB type-C, no additional power supply needed to operate your laptop and charge your battery. Please note that a maximum power consumption of 100 watts is possible via the USB-C connection. (may differ a little between manufacturers and constellation of laptop and dock). If your laptop has a higher power consumption, you will still need a additional power supply for operation.

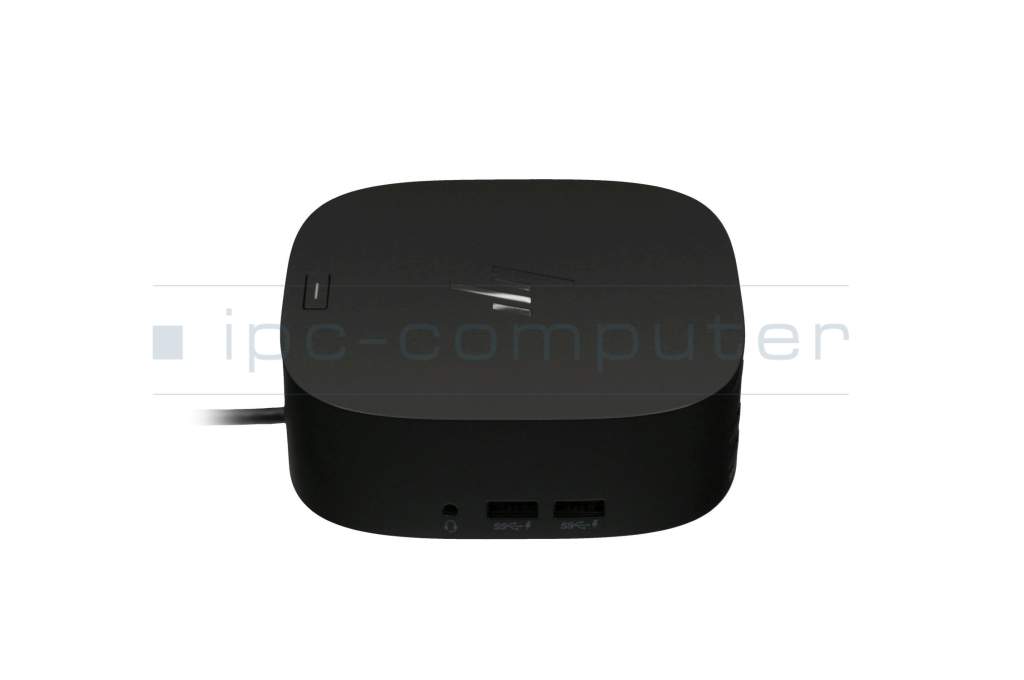

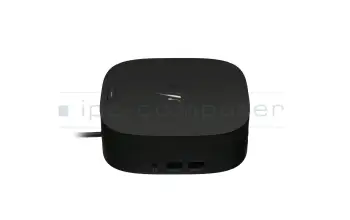

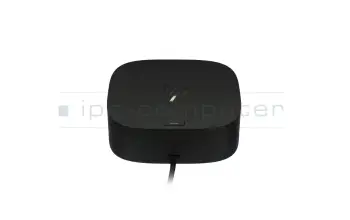

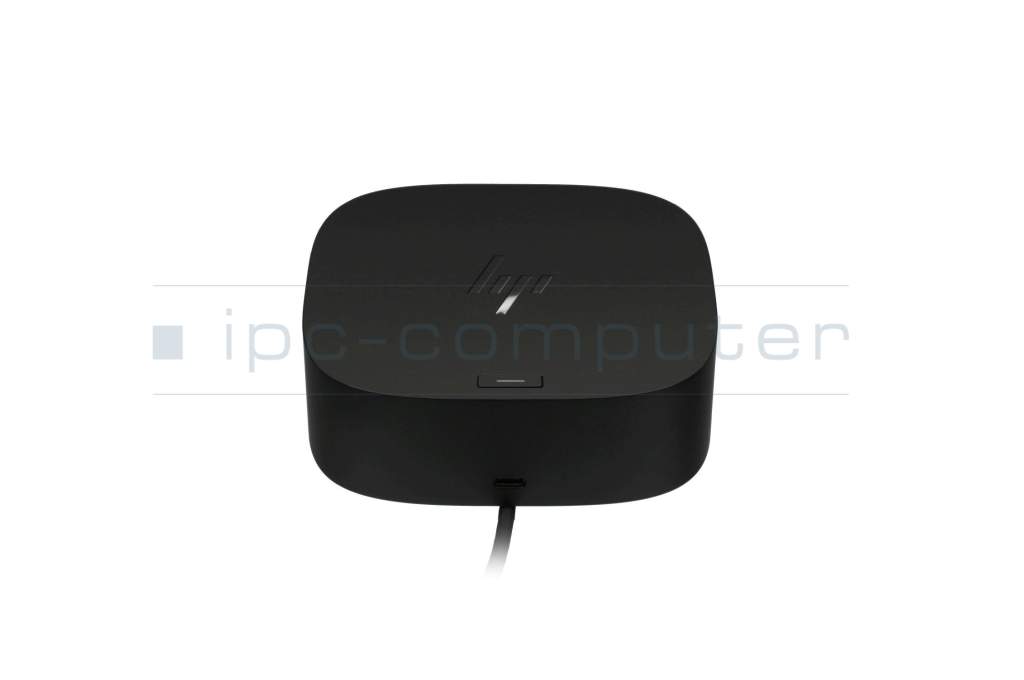

HP USB-C G5 Essential Dock
Focus on the essentials and seamlessly connect your HP USB-C Essential G5 Dock to your notebook.
Simplify your device management at home or in the office.
This essential dock seamlessly delivers power and supports 4 USB-A ports for all your accessories and up to 3 high-res displays, and provides a stable Ethernet connection - all while delivering 65W of power to your notebook.
* Compact design at only 12.7 x 12.7 cm.
* PXE boot - boot computers over a network interface
* LAN/WLAN switching - automatically switch between Wlan/Lan
* In-Band MAC Address Pass-Through - Access the in-band MAC address of the laptop via MAC Address Pass-Through (MAPT)
Compatibility (* compatible with most USB-C or Thunderbolt capable laptops):
Tested and supported on G8/G9 HP notebooks, Apple MacBook Air Retina 2020, Google Pixelbook Go, Google Pixlebook Go 2, Apple MacBook Pro M1 2020, MacBook Air M1 2020, and Dell Latitude 7420; for future HP models, please visit the support website.
Support for external monitors:
Up to 3 displays are supported, depending on host device capabilities. Triple 4K displays require a DisplayPort 1.4 device with Display Stream Compression. If the system does not support Display Stream Compression, it must support DisplayPort 1.4 with High-Res mode enabled.
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N L65253-001
- HP ZBook Fury 15 G7 , HP Pavilion 14-dv0000 , HP Spectre x360 16-f0000 , HP Elite Dragonfly , HP Envy 16-h0000 , HP ProBook 640 G7 , HP Elite Dragonfly Max , HP Elite x360 1040 G9 , HP EliteBook 630 G9 , HP Victus 15-fb0000
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
HP G4 & G5 Docking Station Review
Review of the HP G4 & HP G5 - Thunderbolt 4/USB-C Docking Station
Learn more >Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
