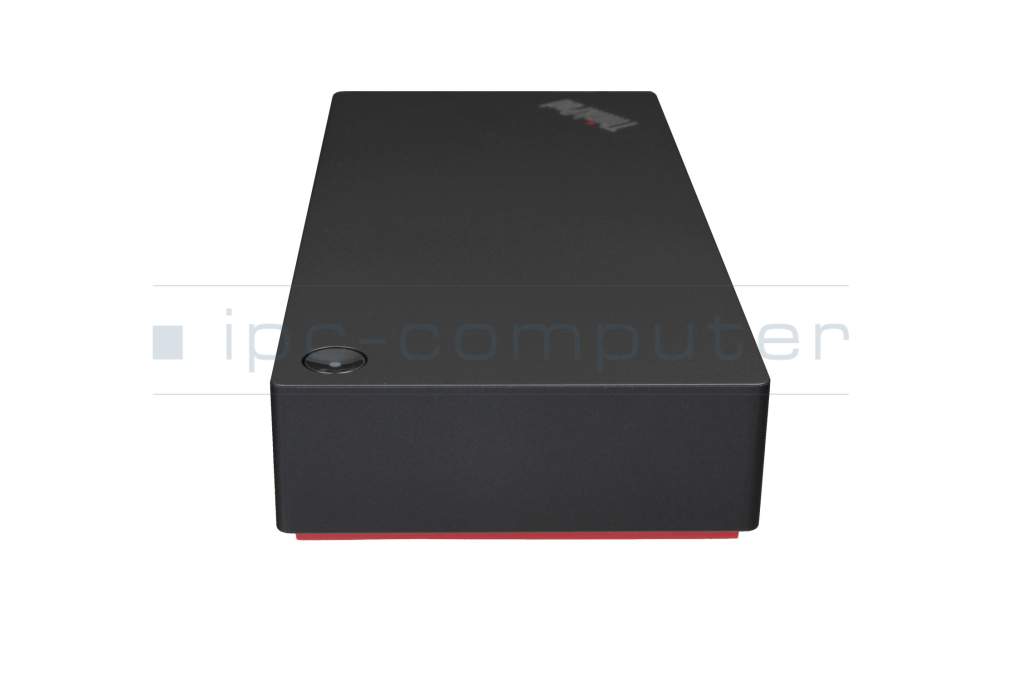

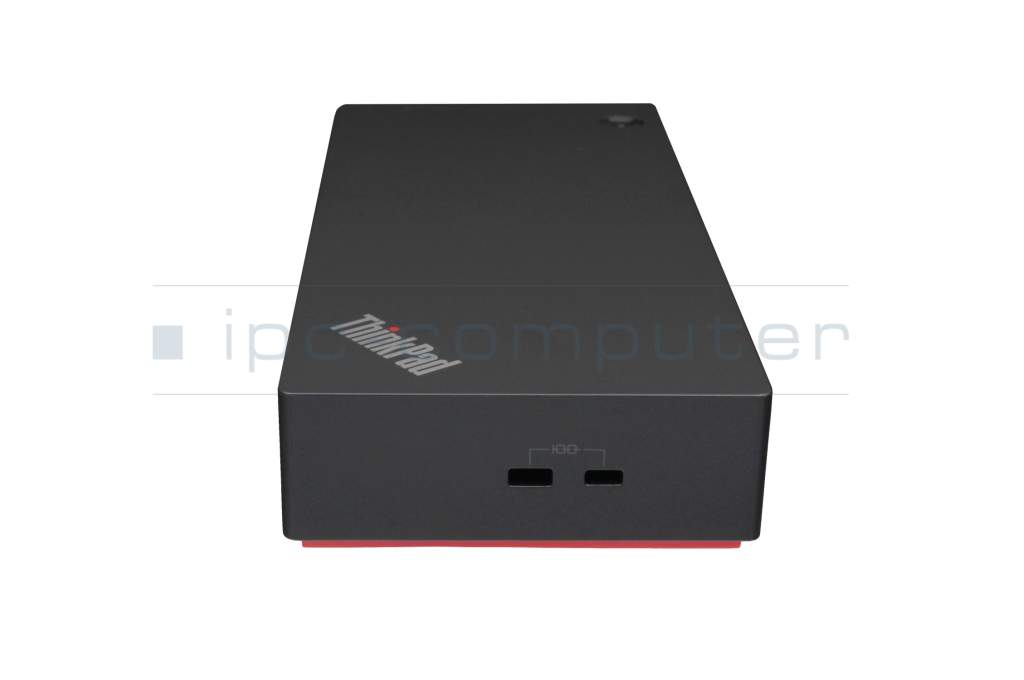

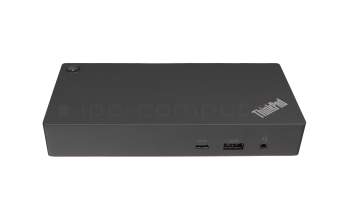

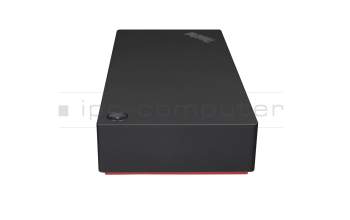

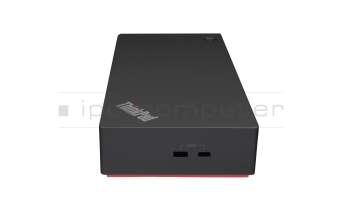

Lenovo LDA-KP ThinkPad Universal USB-C Dock incl. 90W Netzteil
The 90 W power adapter charges ThinkPad and other USB-C notebooks up to 65 W. An optional Slim Tip 135 W power adapter is required for 100 W charging (PN: 4X20E505xx - NTL13U). Available seperately.
- Manufacturer
- Lenovo
- Item Number
- LDA-KP
- Primary Partnummer
- 5D21B41471
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- USB-C 3

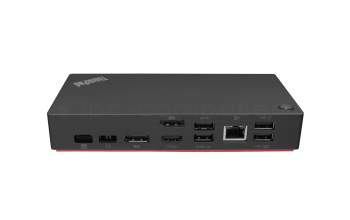

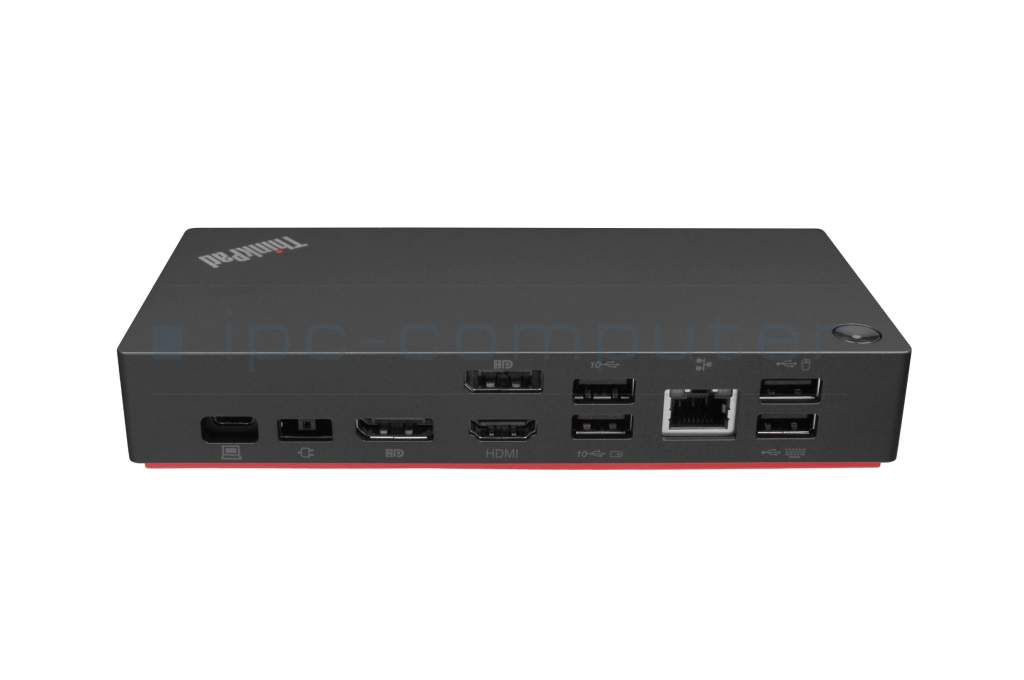

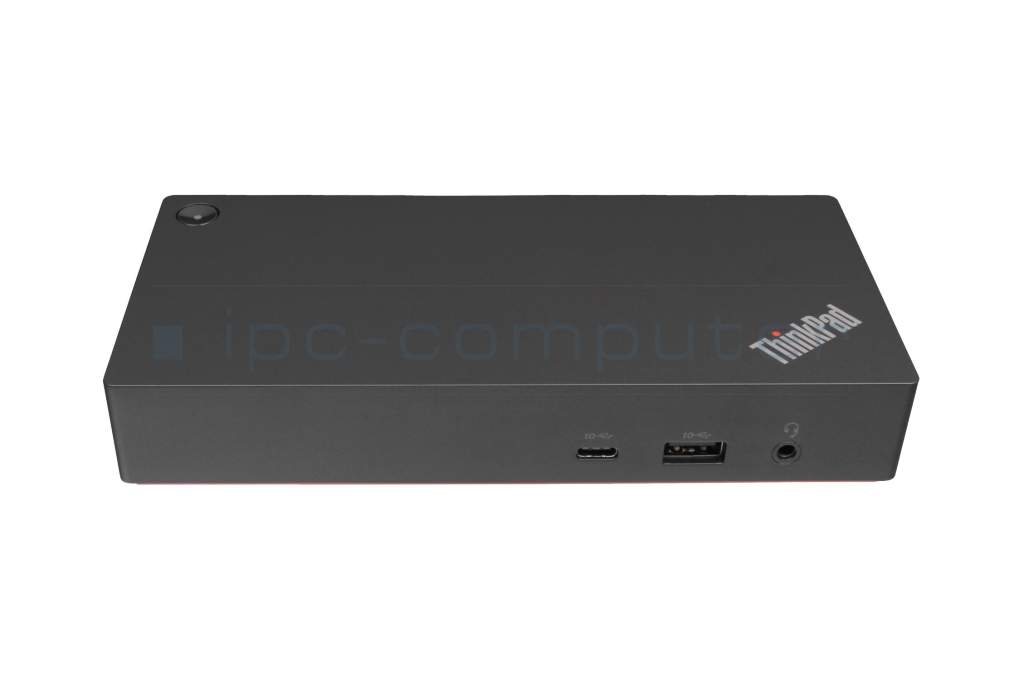

- Connectors
-
1x Audio-Combo
1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x HDMI
1x Kensington-Lock
1x USB-C 3.2 Gen 1
2x DisplayPort
2x USB-A 2.0
3x USB-A 3.2 Gen 2 - Max. resolution of external monitors
-
1x UHD - 3840x2160

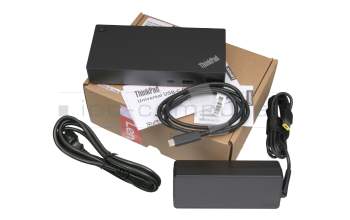

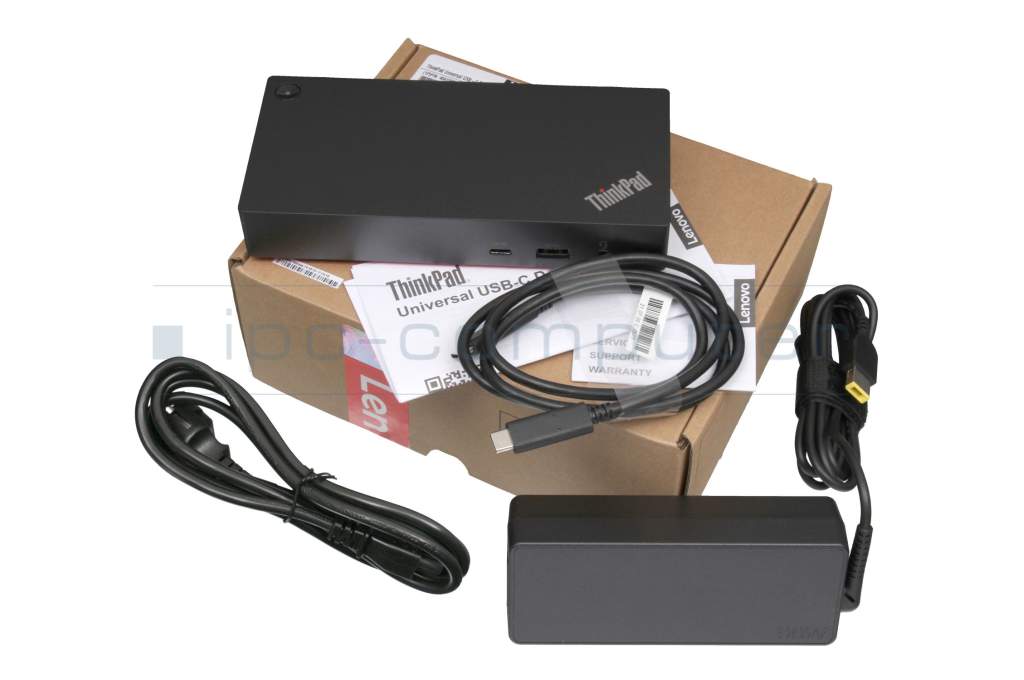

2x UHD - 3840x2160 - Delivery includes
-
AC-Adapter
Manual
Port Replicator
Power cable
USB-C cabel - Included ac-adaptor
- 90W
- Compatible operating systems
-
Windows 10 (32bit/64bit)
Windows 11
Windows 7 (32bit/64bit) - Length / Width / Hight
- 17 cm / 8 cm / 3 cm
Pros
Use the existing interfaces of your laptop separately. Easily connect and disconnect the ports for e.g. mouse, printer, USB in a fast and secure way. Mirroring or extending your desktop to external monitors.
With a Dock connected via USB type-C, no additional power supply needed to operate your laptop and charge your battery. Please note that a maximum power consumption of 100 watts is possible via the USB-C connection. (may differ a little between manufacturers and constellation of laptop and dock). If your laptop has a higher power consumption, you will still need a additional power supply for operation.
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N LDA-KP
- Lenovo Yoga 6-13ALC6 (82ND) , Lenovo Legion 5-17ACH6H (82JY) , Lenovo Flex 5-1570 (80XB/81CA) , Lenovo ThinkPad X1 Yoga 4th Gen (20QF/20QG) , Lenovo IdeaPad 720S-14IKBR (81BD) , Lenovo V320-17ISK (81B6) , Lenovo Yoga Duet 7 -13ITL6 (82MA) , Lenovo IdeaPad Gaming 3-15IMH05 (81Y4) , Lenovo ThinkPad X395 (20NM) , Lenovo IdeaPad 1 5IJL7 (82LX/82QH)
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
