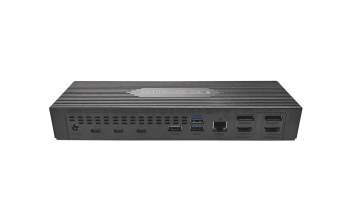

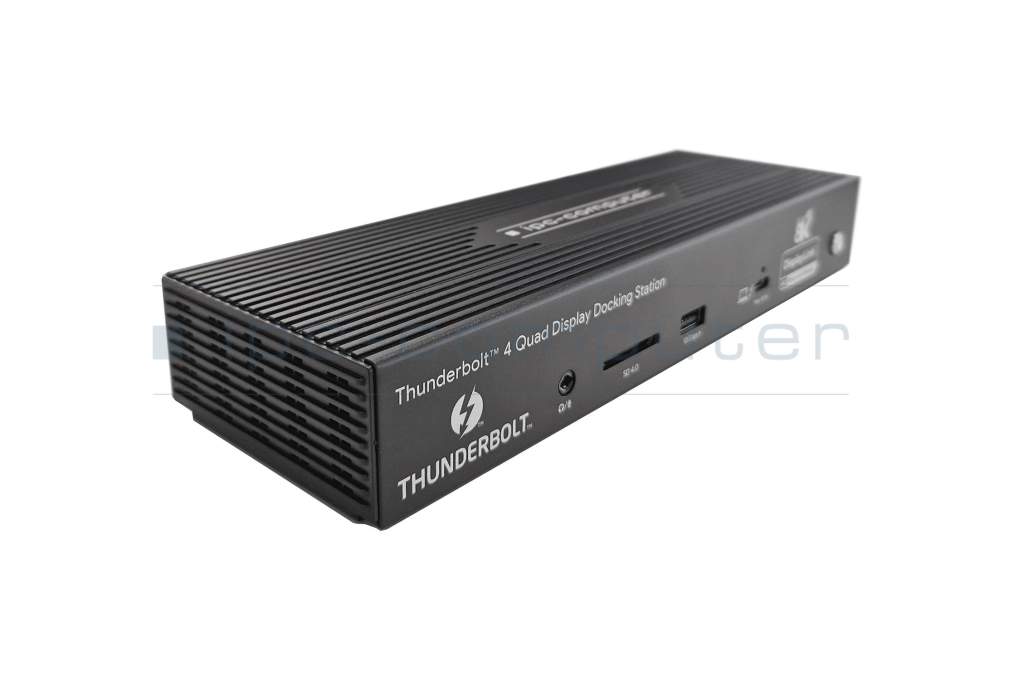

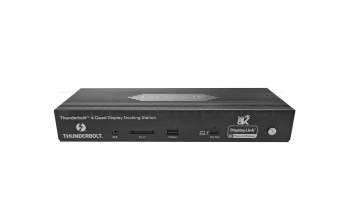

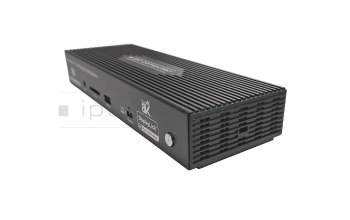

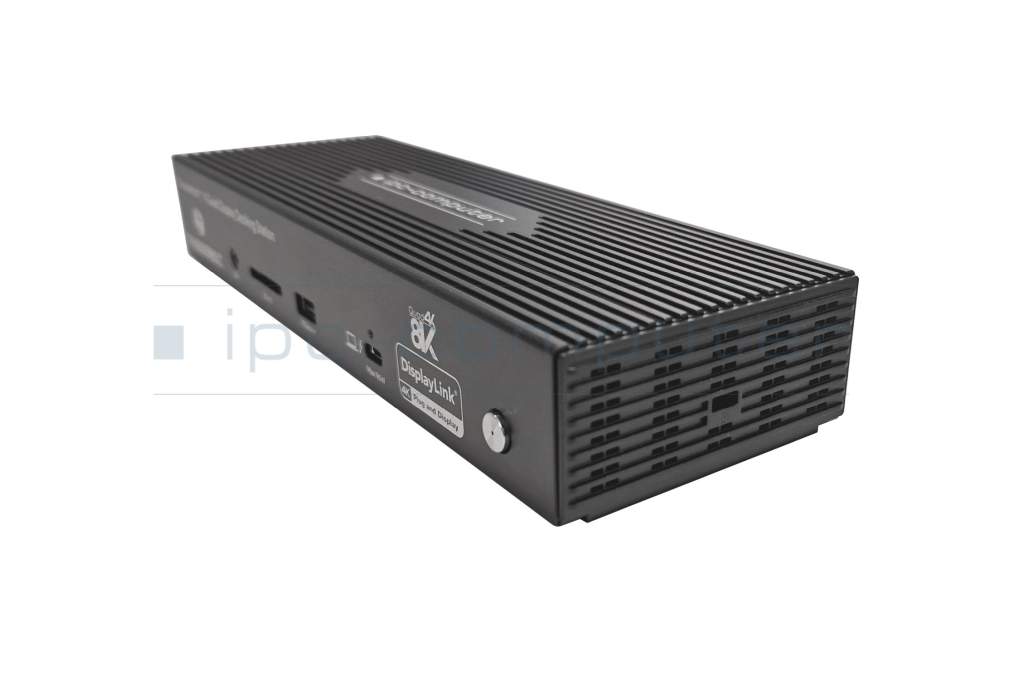

IPC-Computer PRIPC2 Thunderbolt 4 Quad Display Port Replicator incl. 160W Netzteil
- Manufacturer
- IPC-Computer
- Item Number
- PRIPC2
- Primary Partnummer
- PRIPC2
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Thunderbolt 4

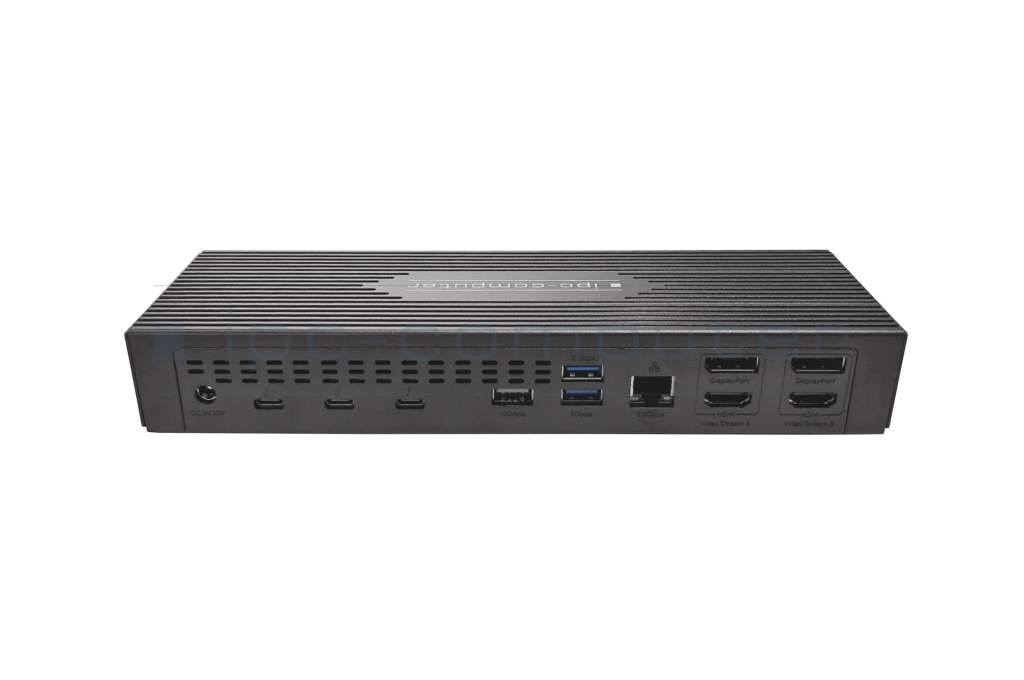

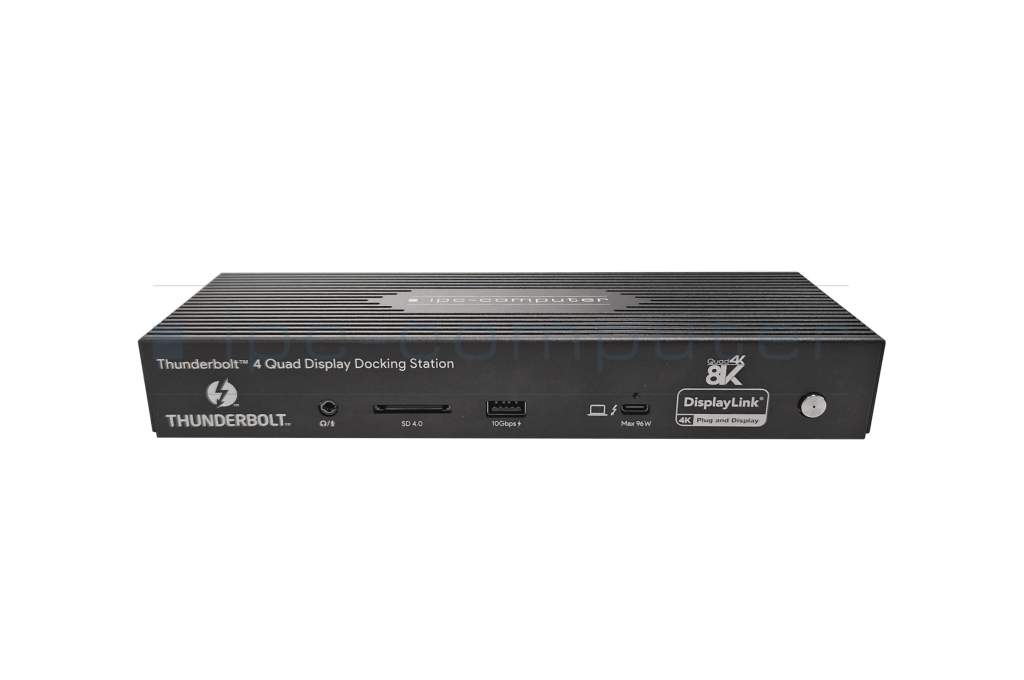

- Connectors
-
1x Audio-Combo
1x DC-In (Power supply)
1x Ethernet RJ-45 2.5Gbps
1x Host Thunderbolt 4
1x Kensington-Lock
1x SD card reader 4.0
2x DisplayPort 1.2
2x HDMI 2.0
2x USB-A 3.2 Gen 1
2x USB-A 3.2 Gen 2
3x Thunderbolt 4 - Max. resolution of external monitors
-
1x 8K - 7680x4320 @ 30Hz
2x 4K2K - 4096x2160 @ 60Hz

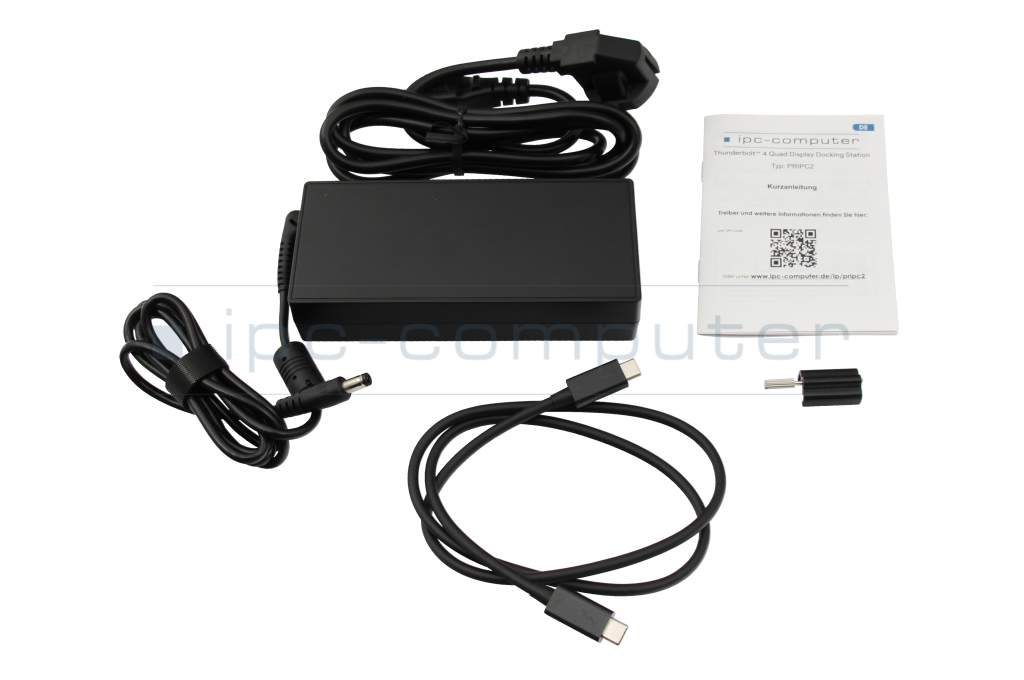

4x UHD - 3840x2160 @ 60Hz - Delivery includes
-

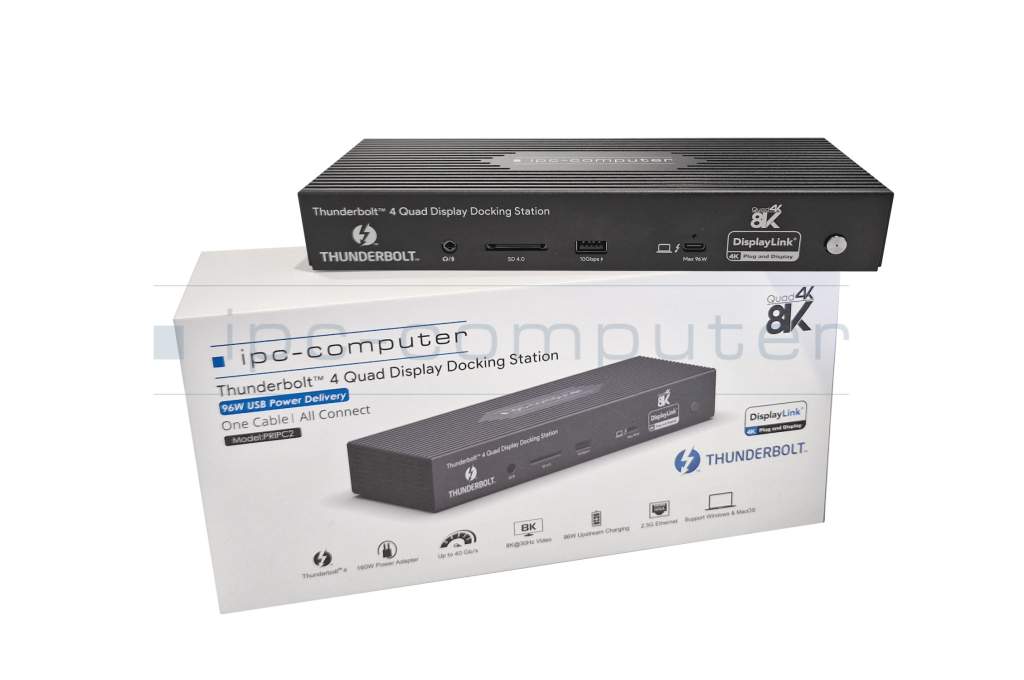

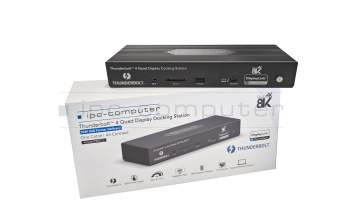

AC-Adapter
Manual
Port Replicator
Thunderbolt cable - Included ac-adaptor
- 160W
- Compatible operating systems
-
Mac OS
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 21 cm / 8.3 cm / 3.25 cm
Pros
Use the existing interfaces of your laptop separately. Easily connect and disconnect the ports for e.g. mouse, printer, USB in a fast and secure way. Mirroring or extending your desktop to external monitors.
Benefits
- Incredible performance: Enjoy lightning-fast data transfers at speeds of up to 40 Gbps and expand your workspace with up to four 4K displays.
- Uncompromising connectivity: With 3 Thunderbolt 4 ports, 2 USB-A 3.2 ports, 2 USB-A 3.0 ports, 1 2.5 Gigabit Ethernet port and an SD card reader, this docking station has everything you need for maximum productivity.
- No more tangled cables: Connect all your accessories to your laptop with just a single Thunderbolt 4 cable and enjoy a tidy and organized desk.
- Support for MacOS & Windows: This docking station is compatible with all major operating systems, so you can use it seamlessly with your laptop.
- Fast charging: Supply your laptop with up to 96 watts of power and charge your battery in no time.
- Backward compatibility: The docking station works not only with Thunderbolt 4, but also with Thunderbolt 3 and USB-C ports that support DisplayLink.
No compromises with Thunderbolt 4
Our Thunderbolt 4 docking station offers you the latest Thunderbolt 4 technology that allows you to push the boundaries of connectivity. Experience incredible speeds of up to 40 Gbit/s, connect multiple 4K displays or even an 8K display and charge your device with up to 96 watts at the same time - all with a single cable. Get the most out of your laptop with a Thunderbolt 4 port and experience a whole new dimension of productivity and efficiency.
4x 4K displays
Expand your workspace with up to four 4K displays and enjoy razor-sharp images and smooth movements. The docking station enables the simultaneous use of four external monitors. This gives you more space for your applications and allows you to work on multiple projects at the same time. (The connection for 4 displays is made via 2 HDMI or DisplayPort ports and 2 Thunderbolt 4 ports)
MacOS & Windows
Whether you use a Macbook or a Windows laptop, this docking station is compatible with all common operating systems. Simply connect your laptop and immediately enjoy the benefits of Thunderbolt 4 technology.
Power supply
Thanks to the Power Delivery function, you can supply your laptop with up to 96 watts of power and charge your battery in no time. This means you can stay productive all day without having to worry about the power supply.
Display configuration options
1 monitor:
Thunderbolt 4 - up to 8K@30Hz
DisplayPort (DP1.2) - up to 4K@60Hz
HDMI2.0 - up to 4K@60Hz
2 monitors:
2x Thunderbolt 4 - twice 4K@60Hz
Thunderbolt 4 (8K@30Hz) + DisplayPort (4K@60Hz)
Thunderbolt 4 (8K@30Hz) + HDMI (4K@60Hz)
2x DisplayPort (DP1.2) - up to 4K@60Hz
2x HDMI2.0 - up to 4K@60Hz
DisplayPort + HDMI - up to 4K@60Hz
4 monitors:
Dual Thunderbolt 4 (4K@60Hz) + dual DP or HDMI (4K@60Hz)
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N PRIPC2
- Lenovo ThinkPad X1 Carbon 6th Gen (20KH/20KG) , HP EliteBook 755 G5 , HP EliteBook 1050 G1 , Lenovo ThinkPad P72 (20MB/20MC) , Asus ZenBook Flip 13 UX363JA , Asus ZenBook 14 UX434DA , MSI GS75 Stealth 10SD/10SES (MS-17G3) , HP ZBook Firefly 14 G7 , Asus VivoBook Flip 14 TP470EZ , Asus VivoBook S14 S435EA
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
How to connect 4 monitors to MacBook M1, M2, or M3 chip
With the IPC-Computer Thunderbolt 4 Dock, you can connect up to four external displays via HDMI, DisplayPort, and Thunderbolt.
Learn more >The best THUNDERBOLT 4 docking station for 4 monitors on MacBook and Windows laptop!
In this video, you will see the setup, available ports, and a few typical use cases.
Learn more >Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
All questions about Docking stations
Accessories, suitable alternative products and recommendations

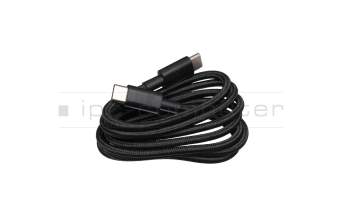

14016-00173800 original Asus USB-C data / charging cable black 1,00m
