Intel JHL8540 MSI Thunderbolt M4 8K PCIe Expansion Card
- Manufacturer
- MSI
- Item Number
- JHL8540
- Primary Partnummer
- JHL8540
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
The offered manufacturer number is an alternative (substitute) to the spare part number you are looking for.

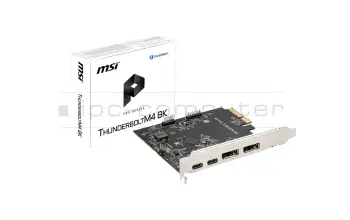

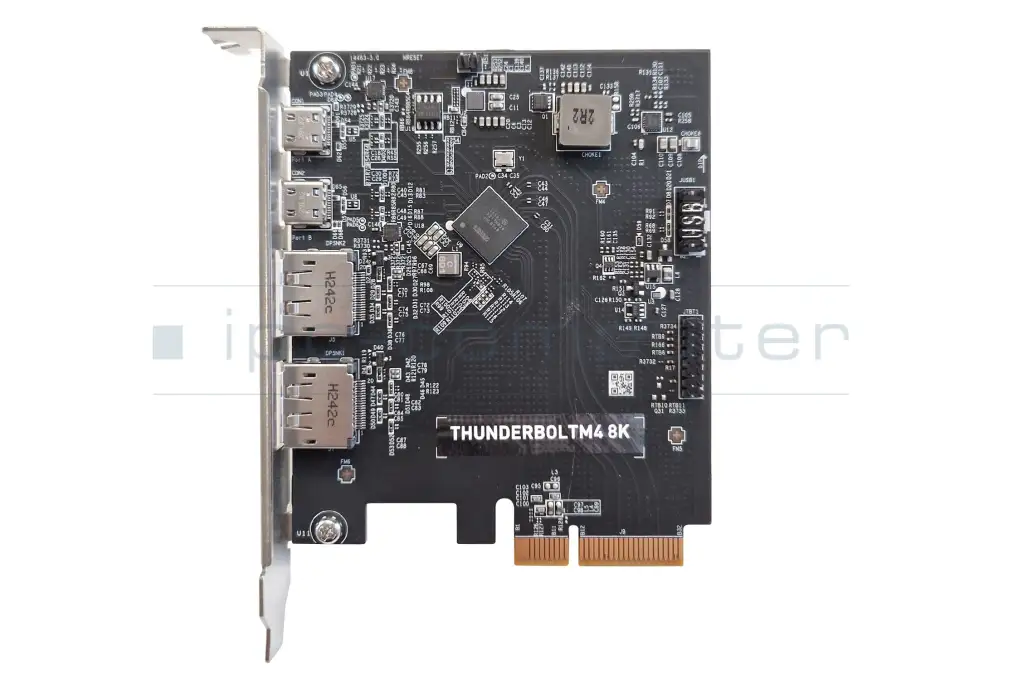

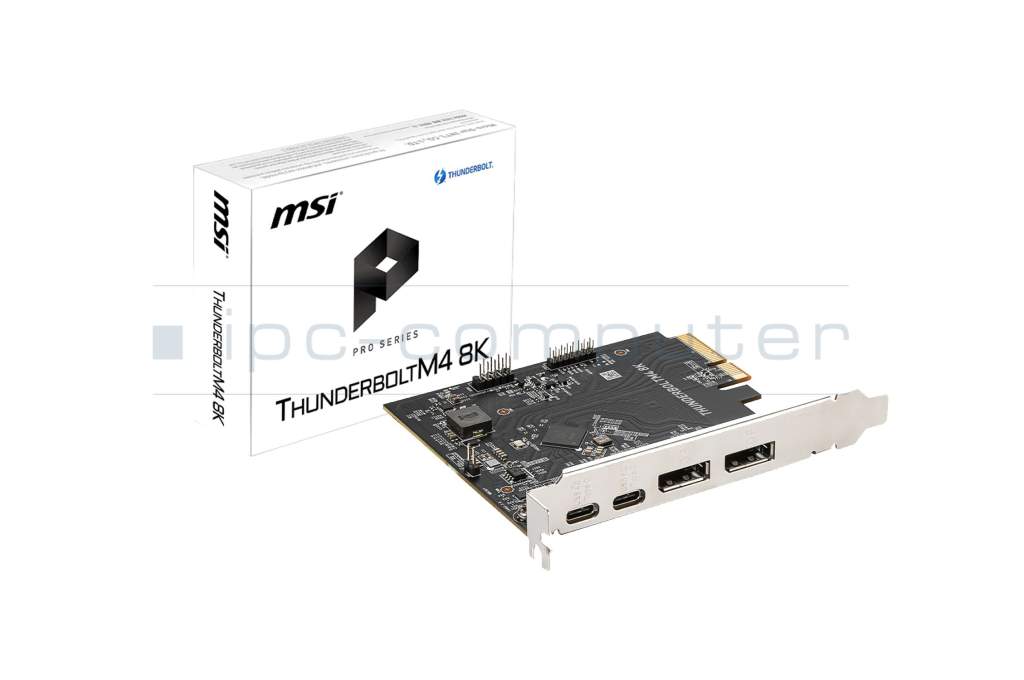

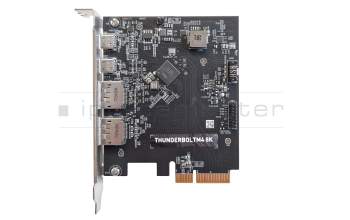

MSI Thunderbolt M4 8K PCIe Expansion Card
Model: THUNDERBOLTM4 8K
Chipset: Intel JHL8540 Thunderbolt 4 Controller
Interface: PCIe 3.0 x4

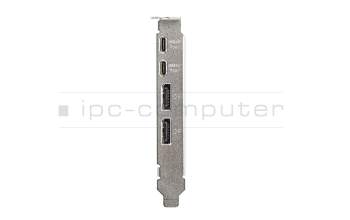

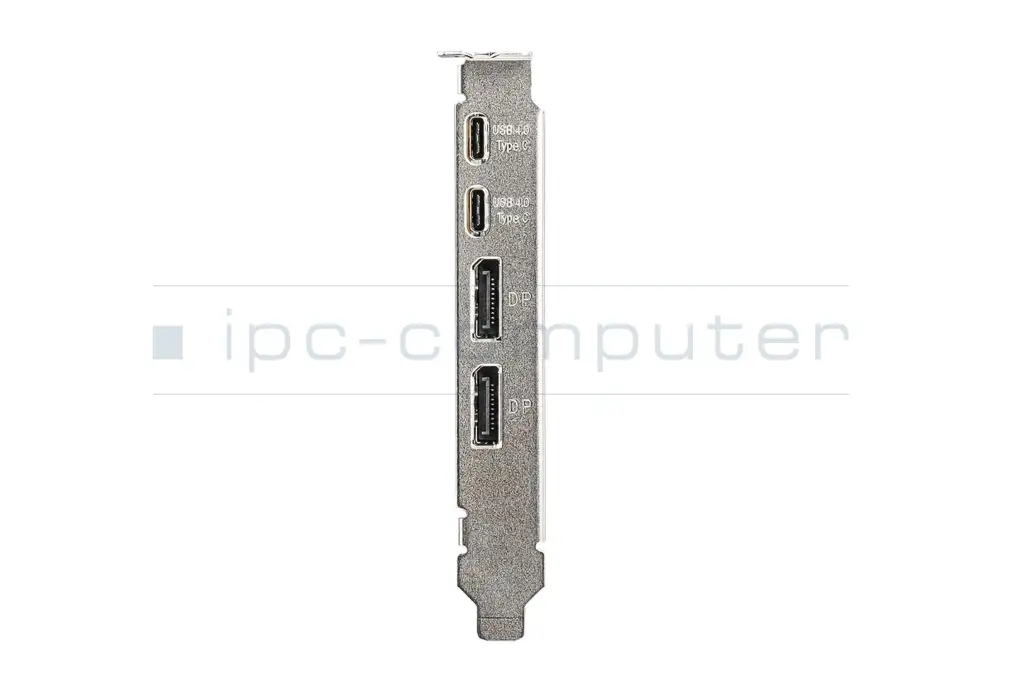

External connections: 2 x Thunderbolt 4 (USB-C), 2 x DisplayPort input ports, 1 x 16-pin TBT header, 1 x USB 2.0 header
Form Factor: 3.35" x 4.11" inches (8.5 cm x 10.4 cm)
Speed:
Up to 40Gbps for Thunderbolt devices
Up to 20Gbps for USB4 devices
Up to 10Gbps for USB 3.2 devices
Supports up to 5V/3A ,15W power charging
Supports up to 8K displays (when connecting the DisplayPort connector of the motherboard or graphics card and the DisplayPort input connector of this expansion card)
Supports daisy chain up to 3 Thunderbolt 4 or 5 Thunderbolt 3 devices.
Please note:
Supports only Intel 500/600/700 series motherboards with JTBT+JUSB header
Accessories:

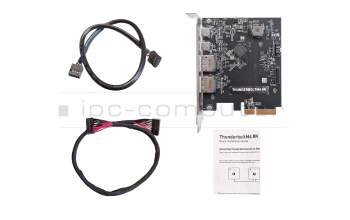

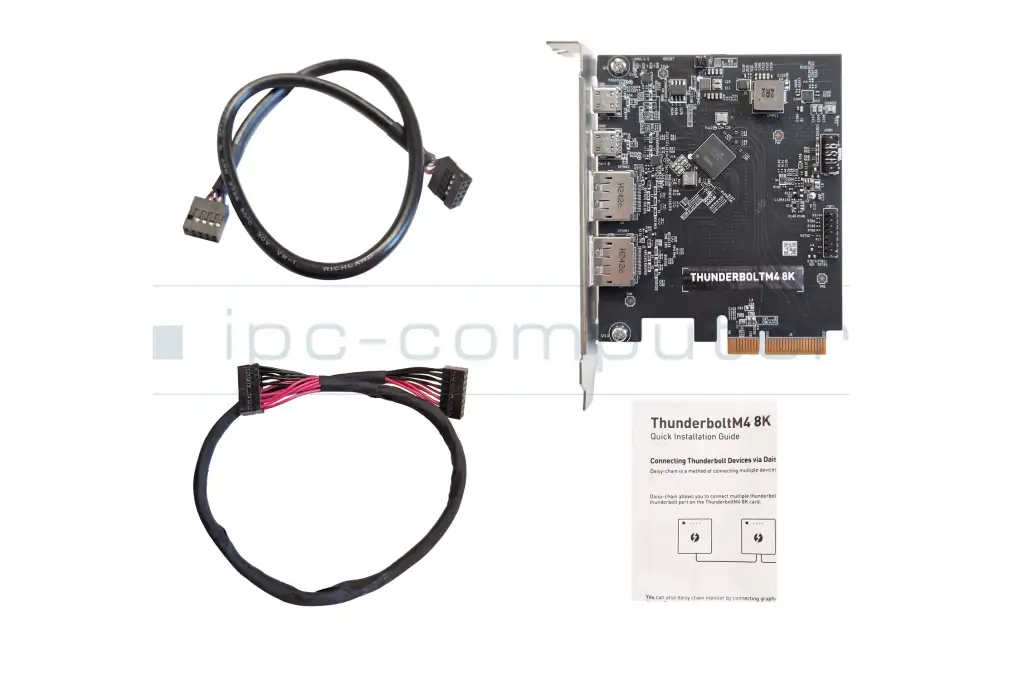

1 x ThunderboltM4 8K card, 1 x TBT header cable, 1 x USB 2.0 header cable, 1x quick start guide
Compatible with:
Intel 500
MEG Z590 UNIFY
MEG Z590 UNIFY-X
MPG Z590 GAMING CARBON WIFI
MPG Z590 GAMING FORCE
MPG Z590 GAMING EDGE WIFI
MPG Z590 GAMING EDGE WIFI SP
MPG Z590 GAMING PLUS
MPG Z590M GAMING EDGE WIFI
MAG Z590 TOMAHAWK WIFI
MAG Z590 TORPEDO
Z590 PRO WIFI
Z590-A PRO
Z590 PRO 12VO
Z590-S01
Z590 PLUS
MAG B560 TOMAHAWK WIFI
MAG B560 TORPEDO
MAG B560M MORTAR WIFI
MAG B560M MORTAR
B560-A PRO
Intel 600
MEG Z690 UNIFY, UNIFY-X
MPG Z690 CARBON WIFI, EK X
MPG Z690 FORCE WIFI
MPG Z690 EDGE WIFI DDR4
MPG Z690 EDGE TI WIFI DDR4
MPG Z690 EDGE WIFI, TI WIFI
MAG Z690 TOMAHAWK WIFI, WIFI DDR4
MAG Z690 TORPEDO, EK X
MAG Z690M MORTAR WIFI
PRO Z690-A WIFI, WIFI DDR4
PRO Z690-A, A DDR4
MAG H670 TOMHAWK WIFI DDR4
Z690-S01
PRO Z690-P DDR4, CEC WIFI
PRO H670-A WIFI, WIFI DDR4
Intel 700
MPG Z790 CARBON WIFI
MPG Z790 EDGE WIFI
MPG Z790 EDGE WIFI DDR4
MAG Z790 TOMAHAWK WIFI
MAG Z790 TOMAHAWK WIFI DDR4
PRO Z790-A WIFI
PRO Z790-A WIFI DDR4
PRO Z790-P
PRO Z790-P DDR4
PRO Z790-P WIFI
PRO Z790-P WIFI DDR4
MAG B760M MORTAR
MAG B760M MORTAR WIFI
MAG B760M MORTAR MAX WIFI
MAG B760M MORTAR DDR4
MAG B760M MORTAR WIFI DDR4
MAG B760M MORTAR MAX WIFI DDR4
MAG B760 TOMAHAWK WIFI DDR4
MAG B760 TOMAHAWK WIFI
B760 GAMING PLUS WIFI
PRO B760-P DDR4
PRO B760-P WIFI
PRO B760-P WIFI DDR4
PRO B760-VC WIFI
